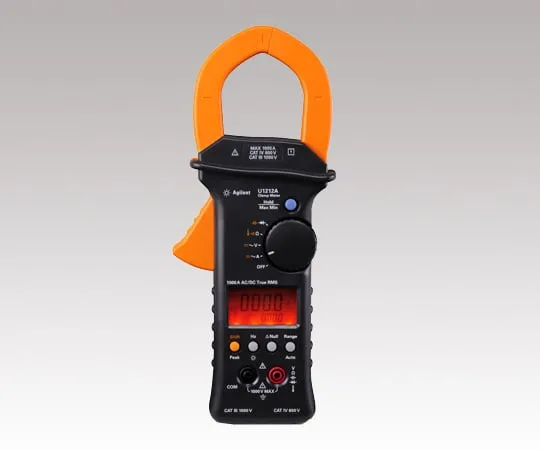

1-2177-02 Clamp Meter (TRUE RMS) U1212A
Product Description
Product Model: 1-2177-02Product Brand: Agilent Features […]
Contact Us
Product Details
Product Model: 1-2177-02
Product Brand: Agilent
Features
- True effective value measurement is possible.
- Temperature measurement with K thermocouple is possible.
Spec
- Model number: U1212A
- Maximum measurement conductor diameter: φ52mm
- Display: 4100 counts, dual display, with backlight
- Power supply: Alkaline battery (9V) x 1 piece (included for test)
- CATIII 1000V and CATIV 600V overvoltage protection
- ACA: 400 - 1000A (2 ranges)
- DCA: 400 - 1000A (2 ranges)
- ACV: 400 - 1000V (2 ranges)
- DCV: 400 - 1000V (2 ranges)
- Resistance: 400 - 4KΩ (2 ranges)
- Size: 106 x 43 x 260mm
- Weight: 525g
- Accessories: Test probe lead, Soft carrying case, Calibration certificate
