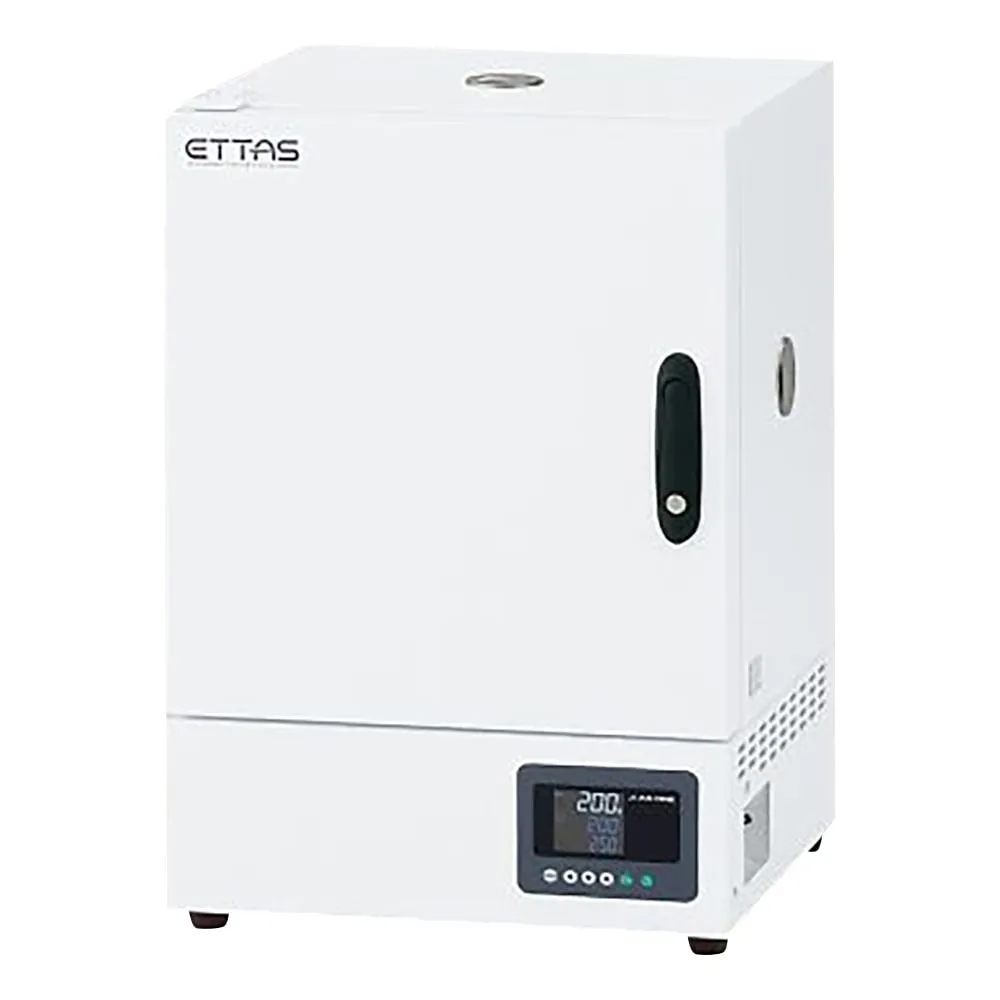

2-7856-21 Multi Oven MOV-300SB
Product Description
Product Model: 2-7856-21Product Brand: AS ONE Corporati […]
Contact Us
Product Details
Product Model: 2-7856-21
Product Brand: AS ONE Corporation
Features
- Natural/Forced Convection Switchable One for Two - Switch shutter allows you to switch between natural and forced convection.
- Three-stage PID control achieves temperature rise with little overshoot.
- Timers for specifying the day of the week and time of day and 16 step 8 pattern program functions are standard equipment.
- In addition to a two-stage PV/SV display that makes it easy to check measured values and set values, an overtemperature prevention set temperature display is adopted.
- In the event of an error, AC100 V 1 A output can be output.
- It ***s a PID controlled temperature controller with a temperature gradient variable program function of up to 16 steps and 8 patterns.
- You can view the current temperature from a distance, display graphs (zoom in and out), and start/stop recording.
- Using Bluetooth(R) communication, you can check the current temperature, display a graph, start/stop recording, and transfer to a PC (CSV format) from an iPhone terminal.
- iPhone apps are intuitive to *** without a manual.
Spec
- Inner dimensions (mm): 300 x 300 x 300
- Temperature settings range (°C): R.T. + 20 to 240
- Convection type: Natural convection/forced convection switching system
- Temperature control system: 3 stages PID control, SSR output
- Function: Timer function and program function
- Safety device: Overcurrent breaker, indep***ent overrise prevention function, burnout mechanism (Heater OFF when sensor is disconnected)
- Inner capacity: 27L
- Material : Exterior/Steel melamine baking coating , Interior/Stainless steel (SUS304)
- Outer dimensions: 455 x 440 x 650mm
- Weight: about 30kg
- Power supply: AC100V 50/60Hz 11.5 A (3P plug)
- Accessories: shelf board Rail/shelf board x 2 sets (Load tolerance: 15kg)
