Electronic/Electrical Parts and Controll Equipments

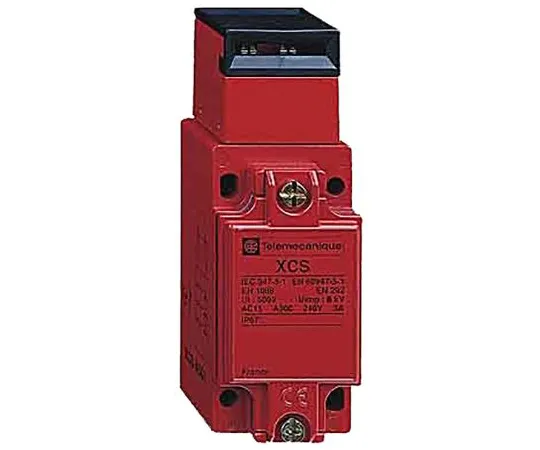

63-7028-23 XCSA Interlock, Zamak, 3NC XCSA802
model:
63-7028-23
brand:
Telemecanique Sensors
Product Description
Product Model: 63-7028-23Product Brand: Telemecanique S […]
Contact Us
Product Details
Product Model: 63-7028-23
Product Brand: Telemecanique Sensors
Features
- Compatible with EN1088 and EN60204
- Actuators must be purchased separately, see accessory table
- XCSA safety interlock switch
- Standard 3 forward opening contact (guard opening) Key operation lock to lock the guard in the positive direction Option version orange LED to show open/close of the guard Heavy-duty metal DIN turret head rotates 360 ° in 90 steps 8 actuator entries and 1 tap entry 20 N Minimum operation power in the positive opening IP67 grade Increased productivity with third contact dedicated to diagnostics Preventa XCS safety switch
Spec
- Quantity:1piece
- Connection Type : M20
- Lock Style : Key
- Normal State Configuration : 3NC
- Housing Material : Zamak
- Maximum AC Voltage : 240V
- Maximum DC Voltage : 250V
- Safety Contacts : 3NC
- Range : Preventa
- Actuator Included : Yes
- Number of Head Directions : 8
- Series : XCSA
- Dimensions : 40 x 44 x 114 mm
- CODE No.:133-0083
