Features

• CSA C22-2 No 14, EN 1088, EN/IEC 60204-1, EN/IEC 60947-5-1, UL 508.
• UL, CSA
• With appropriate monitoring systems and correctly wired, these switches can meet the requirements of safety category 4, EN/ISO 13849-1 compliant, PL e, EN/ISO 13849-1 compliant, and SIL 3, EN/IEC 61508 compliant.
• XCSM Series, Safety Limit Switches

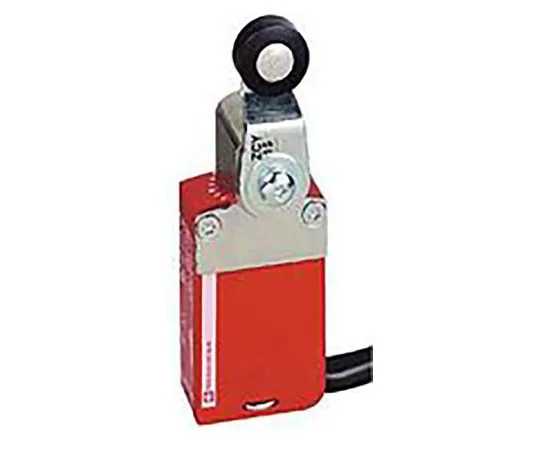

• Schneider's XCSM Series Miniature/Small Industrial Limit Switches are designed for *** with actuator-driven guard switches to monitor access doors and guards on low and high inertia machines.　When ***d alone, be sure to *** it in Positive Mode. When combining in pairs, install one switch in "positive mode" and the other switch in "negative mode."　It can be linear (plunger) or rotational (lever).
• NC contacts (secure open action) Snap-action contacts Miniature/small red metal housing, cable-mounted plastic protective cover, fixed with 5 lobe socket head safety screws Rotating motion switch (lever) variable up to 360° every 15° Head continuous approach only linear motion switch (plunger) EN/IEC 60529 compliant protection rating IP66/67 RoHS compliant
