Features

• IEC60947, EN292, EN60204, EN1088

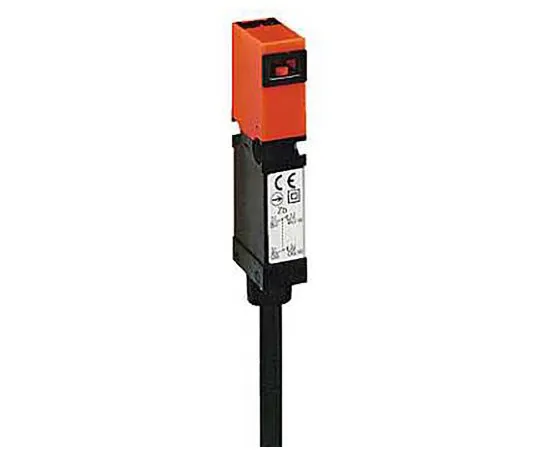

• XCSMP Safety Interlock Switch
• New XCS Series Safety Switch This device is designed to comply with the currently effective standards IEC60947, EN292, EN60204 and EN1088 to ensure the safety and operational reliability of machine operators.　When the actuator attached to the machine guard is pulled out of the head of the switch, the machine is stopped to protect the driver.　When properly installed, a Category 3 control circuit conforming to EN954 or a Category 4 control circuit conforming to EN954 is formed (when combined with the PREVENTA XPS safety module).
• Plastic, double insulated, turret head, type XCSMP, XCSPA and XCST key-operated switches, with/without actuator locking Miniature design plastic housing Cabled, 2 m, 5 m or 10 m long Maximum operating speed: 1.5 m/s, minimum: 0.05 m/s Mechanical durability: > 1 million times Maximum operating speed: 1200 operations for maximum durability/hour Ambient temperature range: -25 →+70 °C for operation, -40 →+70 °C for storage (-25 →+80 °C for XCSMP)
