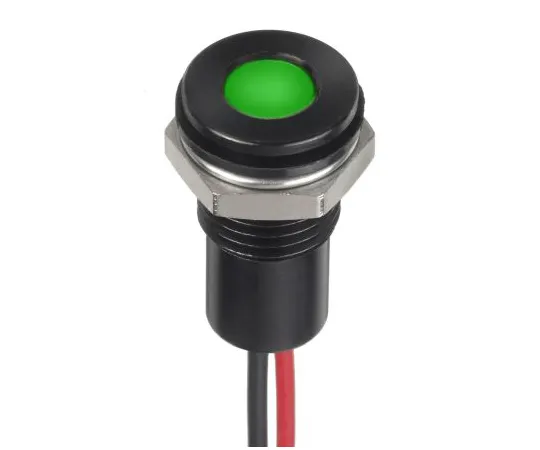

63-7027-77 RS PRO Green Indicator, 24 V dc, 8mm Mounting Hole Size, Lead Wires Termination, IP67 132-9154
Product Description
Product Model: 63-7027-77Product Brand: RS PRO Features […]
Contact Us
Product Details
Product Model: 63-7027-77
Product Brand: RS PRO
Features
- IP67 Sealing Option (EN60529), UL
- 8 mm Rear End Epoxy Sealed IP67 Short Body LED Indicator
- RS Pro Q8 Series Short Body LED Indicator with 8 mm Diameter Panel Mounting. It has a 5 mm color diffuse LED. The bezel has a glossy or black chrome finish and is available in protruding or embedded bezel styles. The voltage range is 12 ~ 24 V dc. The 2V indicator requires an appropriate series resistor for normal operation. The rear end is epoxy-sealed and has a 200 mm wire. The indicator is IP67 panel sealed and comes with a securing nut and spring washer.
- Features and Benefits: IP67 PanelSealed Epoxy Sealed Rear Termination Resistant Vibration Diffusion Lens Colored LED Wide Field of View Wire Termination: UL Certified 200 mm
- Application:
- Medical Communications Engineering Transportation System Special Vehicles Agricultural Vehicles Universal Outdoor Application
Spec
- Quantity:1piece
- Voltage Rating : 24 V dc
- Light Output Colour : Green
- Mounting Hole Size : 8mm
- Lamp Type : LED
- Lamp Size : 5 mm
- Termination Type : Lead Wires
- IP Rating : IP67
- Bezel Style : Flush
- Bezel Colour : Black Chrome
- Current Rating : 20 mA
- Intensity : 300 mcd
- Length : 16.6 mm
- CODE No.:132-9154
