Features

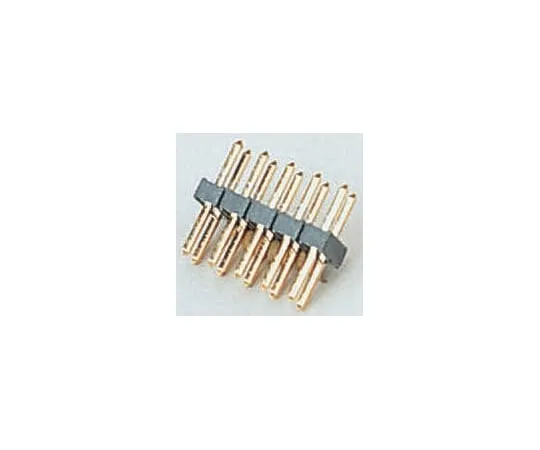

• Harwin M22 2.00 mm Substrate Pin Header Connector
• The M22 series substrate through hole and SMT mounting header connector has a 2.00 mm pitch.　These M22 2.00 mm board headers are available in 2 and 1 row, vertical and light angle configurations, providing a versatile solution for a variety of applications.　Both 22 the 3.5 mm substrate through-hole and SMT header housings are made of high temperature thermoplastic resin and can withstand the same level of reflow soldering.　The housing is castellated so it can be cut as needed. Be very careful when disconnecting.　These M22 2.00 mm board header connectors mesh with M22 series board sockets, socket housings and jumpers.
• Features & Benefits: Multiple configuration options for flexible design and support pin length High temperature thermoplastic housing that can withstand reflow soldering process Can be cut as small as needed Applications: These M22 2.00 mm board headers are versatile and have established themselves as standard connectors for embedded PCs, motherboards and electronic systems.　Major applications include home appliances, communications, drive and control, industrial monitoring and personal computing.
