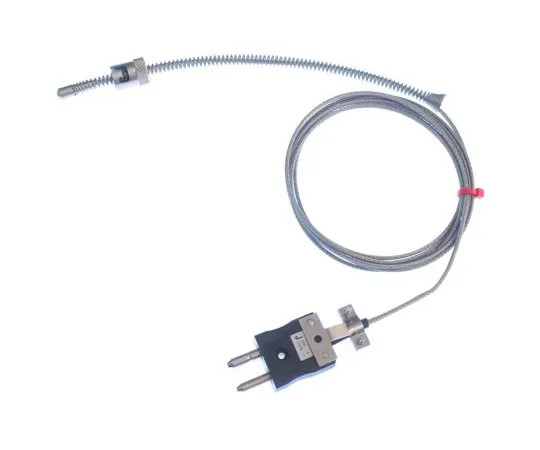

63-7025-43 RS PRO Type J Thermocouple 6mm Diameter, -60°C → +350°C 131-4764
Product Description
Product Model: 63-7025-43Product Brand: RS PRO Features […]
Contact Us
Product Details
Product Model: 63-7025-43
Product Brand: RS PRO
Features
- Type K or J Adjustable bayonet type thermocouple
- Adjustable thermocouple insertion depth Tip diameter: 6.0 m 170 mm Spring and adjustable fixed cap (11.5 mm inner diameter single slot) Glass fiber insulation lead with stainless steel braided coating, 7/0.2 mm Rated temperature: 350°C Cable clamp and standard thermocouple plug for excellent heat resistance, but not suitable for fluid areas. Tolerance Grade: 2, according to IEC-584 Insulation Rating: -60 °C → 350 °C (maximum 400 °C for a short time) Color coding (core and coating) according to IEC-584-3 Types J and K available
Spec
- Quantity:1piece
- Thermocouple Type : J
- Probe Diameter : 6mm
- Maximum Temperature Sensed : +350°C
- Termination Type : Standard Connector
- Cable Length : 3m
- Standards Met : IEC
- CODE No.:131-4764
