63-7025-36 RS PRO Type J Thermocouple Copper probe 6.35mm Diameter, 0°C → +200°C 131-4742
Product Description
Product Model: 63-7025-36Product Brand: RS PRO Features […]
Contact Us
Product Details
Product Model: 63-7025-36
Product Brand: RS PRO
Features

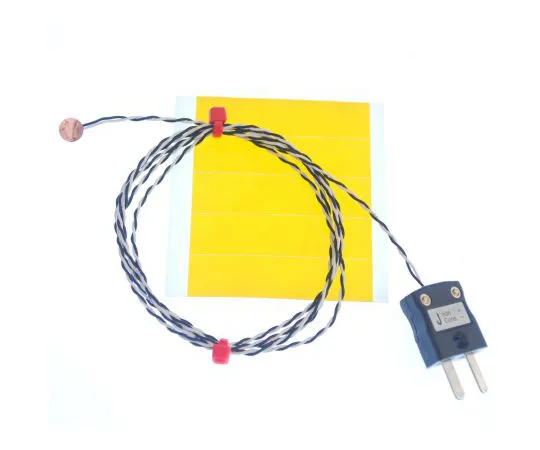

- Type K/J Copper Disc Thermocouple
- Terminated thermocouple with a brazed copper disc at the tip Fast response - Ideal for surface measurements Heat resistant adhesive Kapton strip (13 x 18 x 5 mm) Copper disc, 6.35 mm diameter x 0.3 mm thickness 1/0.2 mm Teflon R Insulated twisted pair Cable length: 1 m or 2 m Excellent mechanical strength and flexibility Resistant to oils, acids and other harmful fluids/vapours/gases Optimum temperature range for testing and development applications -0°C to 200°C Colour coding is in accordance with IEC584-2 specifications
Spec
- Quantity:1piece
- Thermocouple Type : J
- Probe Diameter : 6.35mm
- Maximum Temperature Sensed : +200°C
- Termination Type : Miniature Plug
- Cable Length : 2m
- Standards Met : IEC
- CODE No.:131-4742
