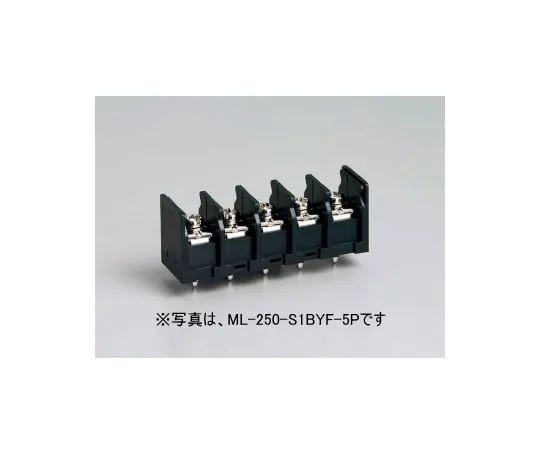

63-3129-42 Penetrating Terminal Block 2 Screws with 250 V -10 A square washers for printed circuit boards ML-250-S1BYF-2P
model:
63-3129-42
brand:
SATO PARTS CO., LTD.
Product Description
Product Model: 63-3129-42Product Brand: SATO PARTS CO., […]
Contact Us
Product Details
Product Model: 63-3129-42
Product Brand: SATO PARTS CO., LTD.
Features
- Substrate-mounted terminal block. It is ***d for connecting input and output of switching power supply units. It takes a lot of time and effort to connect, but it is robust and reliable, so it is often ***d in high-power and FA fields. It is possible to deal with cases where the connection is decided by the judgment of the test equipment or the like without using soldering or special tools.
Spec
- Rating: 250 V -10 A
- Columns/Columns: 1 row
- Mounting method: Screw stop
- Number of poles: 2
- Terminal fittings: Combined soldering 110 tab terminal (t 0.8)
- Terminal screws: M3 x 7.2
- Main insulation material: P.B.T. (UL 94 V-0)
- Terminal Fitting Orientation: Vertical
