Spec

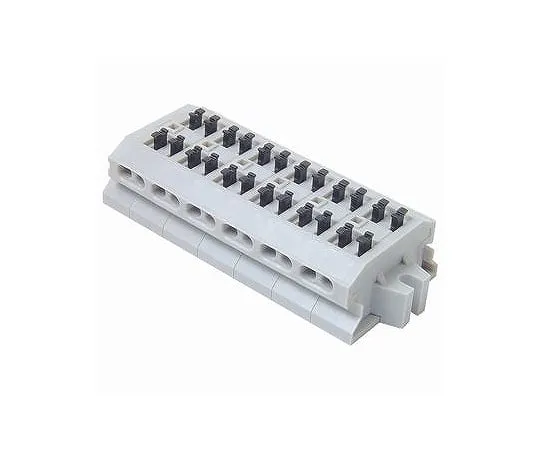

• Content relay type screwless terminal block with one pole and four wires
• Rated 300 V -10 A
• Number of poles 6 poles
• Pitch between terminals 10 mm
• Recomm***ed Suitable Tool Slotted Screwdriver/(Shaft Diameter PHI.3/Cutting Edge Width 2.6)
• Remarks Flanged Yes
• Usable wire range: single wire: phi 0.4 mm to phi 1.2 mm (AWG 26 to AWG 16)
• Stranded wire: 0.3 mm 2 ~ 1.25 mm 2 (AWG 22 to AWG 16), wire diameter phi 0.18 mm or more
