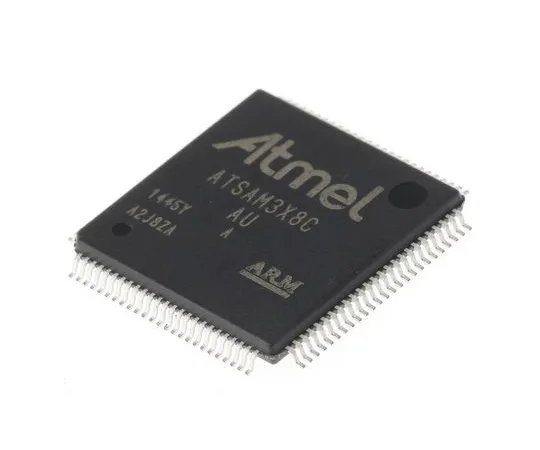

63-7023-04 Microchip, 32bit ARM Cortex M3 Microcontroller, 84MHz, 512 kB Flash, 100-Pin LQFP ATSAM3X8CA-AU
Product Description
Product Model: 63-7023-04Product Brand: Microchip Featu […]
Contact Us
Product Details
Product Model: 63-7023-04
Product Brand: Microchip
Features
- SMART SAM3X ARMR Cortex-M3 Microcontroller
- Based on the ARMR CortexR-M3 core, the AtmelR SMART SAM3X flash-based microcontroller (MCU) enhances connectivity by adding devices with Ethernet, dual CAN and high-speed USB (HS USB) MiniHost, and on-chip physical layer (PHY). The series also features QTouch capacitive touch support, improved safety and security, and low power consumption.
Spec
- Quantity:1piece
- Family Name : SAM3X
- Package Type : LQFP
- Mounting Type : Surface Mount
- Pin Count : 100
- Device Core : ARM Cortex M3
- Data Bus Width : 32bit
- Program Memory Size : 512 kB
- Maximum Frequency : 84MHz
- RAM Size : 96 kB
- USB Channels : 1
- Number of PWM Units : 1
- ADC Channels : 16
- Typical Operating Supply Voltage : 1.8 V, 3.3 V
- Minimum Operating Temperature : -40 °C
- CODE No.:131-1190
