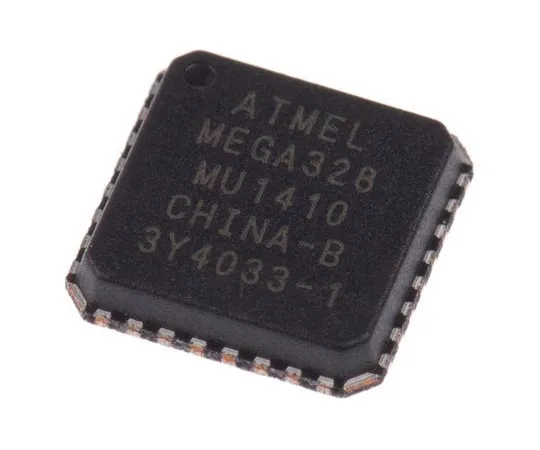

63-7021-88 Microchip Technology ATMEGA328-MU, 8bit AVR Microcontroller, 20MHz, 32 kB Flash, 32-Pin QFN/MLF ATMEGA328-MU
Product Description
Product Model: 63-7021-88Product Brand: Microchip Featu […]
Contact Us
Product Details
Product Model: 63-7021-88
Product Brand: Microchip
Features
- ATmega328 8 bit megaAVR Microcontroller
- The Atmel ATmega328 microcontroller is an 8 bit megaAVR device based on the AVR advanced RISC architecture. The ATmega328 executes powerful instructions in a single clock cycle, balancing power consumption by 1 MIPS per MHz.
- Microcontroller Functionality
- 20 MHz Maximum Operating FrequencyUp to 20 MIPS @ 20 MHz 32 KB Flash 1024 B EEPROM 2 KB SRAM 131 Instruction Runs most instructions in a single clock cycleGeneral purpose register x 32 GPIO x 23 Calibrated oscillator with built-in power-on reset and programmable brownout detectionExternal/internal interrupt source5 energy-saving sleep modeInternal/external interruptFully static operation
- Peripheral Function
- 10 bit 15 ksps A/D converter (ADC) 8 or 6 channelCapacitive touch sense 16 channelTemperature sensor 2 8-bit timers 1 16 bit timer output comparison module 6 channels6 PWM channelsProgrammable serialUSART master/slave SPI serial interface byte oriented 2 wire-serial interface I2C compatibleProgrammable watchdog timer with indep***ent oscillator Analog comparator Interrupt/wake up when pin changes
Spec
- Quantity:1bag(5pieces)
- Family Name : ATmega
- Package Type : QFN/MLF
- Mounting Type : Surface Mount
- Pin Count : 32
- Device Core : AVR
- Data Bus Width : 8bit
- Program Memory Size : 32 kB
- Maximum Frequency : 20MHz
- RAM Size : 2 kB
- USB Channels : 0
- Number of PWM Units : 1
- ADC Channels : 8
- Typical Operating Supply Voltage : 1.8 → 5.5 V
- Height : 0.95mm
- CODE No.:131-0269
