Features

• The panel mounting shell of the pin insert meshes only with the cable mounting shell of the socket insert, and the panel mounting shell of the socket insert meshes only with the cable mounting shell of the pin insert.

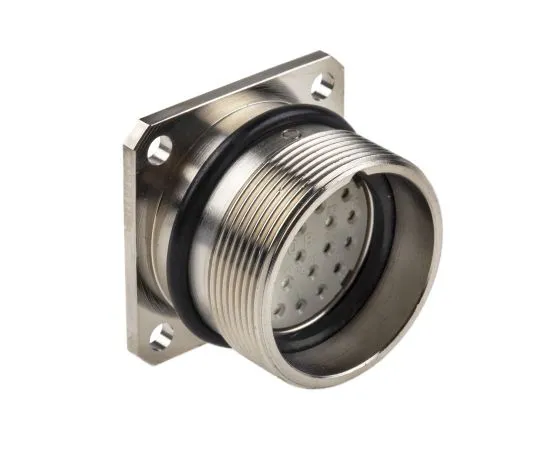

• Epic Series R Flange-Mounted Round Connectors
• Lapp's Epic Series R round connectors offer a compact solution for signal and power applications. The relatively small shell size with high-density contacts is ideal for space saving.　These front and rear panel mounting connectors come with a rigid flange that can be screwed to the surface for secure connection.　The R-series connector ***s a robust copper alloy and nickel plated structure for excellent mechanical protection. It also has a screw-lock type clamping system and is well sealed, making it suitable for *** in harsh environments. Dust caps are also provided to provide maximum protection even when not mixed.　Features and Advantages Compact Size Screw-Locked Kan-together IP65 Corrosion Resistant Mechanical Protection Operating Temperature: -40 → +125 °C Applications The Lapp R Series round connectors are designed for multi-core cables in all industrial signaling applications.　Machinery and Equipment Manufacturing Measurement and Control Technology Automation Environment Epic Series R Round connectors are rated IP65 protection. This means it is dustproof and can withstand low-pressure fountain flows. It also has good mechanical resistance and corrosion resistance. Thus, a low-maintenance connector solution is available for most indoor environments and for some outdoor applications.　Connect the connector panel socket and plug to the cable mount socket and plug.　531-790 531-790, Epic R Series 9 Polar Circular Connector Plug 115-3335 115-3335, Epic R Series 9 Polar Circular Connector Plug 234-657 234-657, Epic R Series 9 Polar Circular Connector Socket 115-3307 115-3307, Epic R Series 12 Polar Circular Connector Plug 531-807 531-807, Epic R Series 12 Polar Circular Connector Plug 234-663 234-663, Epic R Series 12 Polar Circular Connector Socket 531-813 531-813, Epic R Series 16 Polar Circular Connector Socket 234-679 234-679, Epic R Series 16 Polar Circular Connector Socket 130-5104 130-5104, Epic R Series 21 Polar Circular Connector Plug 130-5126 130-5126, Epic R Series 26 Polar Circular Connector Plug Accessory Dust Cap Can Be Used for Flange-Mounted Epic Series R Circular Connectors.　; 531-829 531-829.
