Spec

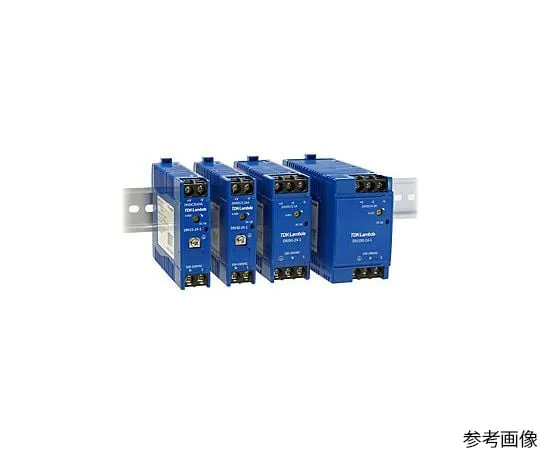

• ■Features All models have a uniform height of 75 mm, DIN rail mounting dedicated power supply input/output terminals are a line-up of block terminals (safety terminals) and European terminals
• European terminal adopts "spring method" to realize miniaturization by high efficiency: Up to 90% efficiency (DRJ 100 -24 -1)
• 45% smaller in volume compared to the previous model (DLP 100 -24 -1) Wide operating ambient temperature
• Available at -20 to + 70 degrees C (100% load factor to -10 to + 55 degrees C) SEMI-F 47 compatible (at 200 VAC input)
• Series name DRJ
• Model name DRJ 15 DRJ 30 DRJ 50 DRJ 100
• Input Voltage: 85 ~ 264 VAC/120 ~ 370 VDC
• Output Voltage 24 VDC 5/12/24 VDC 12/24 VDC 24 VDC
• Efficiency 24 V (230 VAC typ) 87% 90% 89.50% 90%
• Maximum output power 15 W 30 W 50 W 100 W
• Cooling system Natural air cooling
• Operating ambient temperature -10 to + 55 degrees C: 100%, -20 degrees C: 50%, + 70 degrees C: 50%
• Safety standards UL 60950 -1, CSA 60950 -1, EN 60950 -1, UL 508
• EMIEN 55011/55022 -B, FCC-B, VCCI-B Compliance
• Size (WxHxD) mm 21.5 x 75 x 9030 x 75 x 9045 x 75 x 105
• Warranty period: 5 years (subject to conditions)
• RoHS compliant
