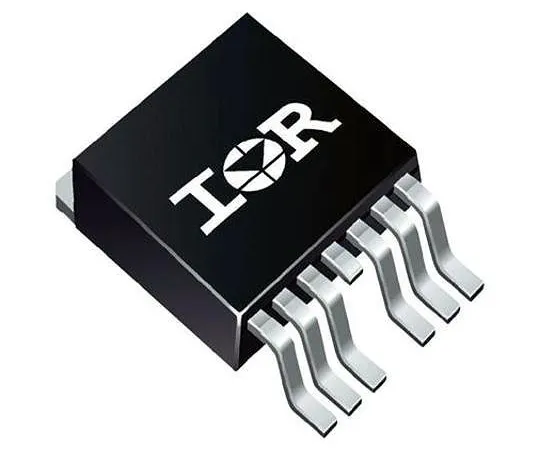

63-7020-46 IRFS3004TRL7PP N-Channel MOSFET, 400 A, 40 V HEXFET, 7 + Tab-Pin D2PAK Infineon IRFS3004TRL7PP
Product Description
Product Model: 63-7020-46Product Brand: Infineon Featur […]
Contact Us
Product Details
Product Model: 63-7020-46
Product Brand: Infineon
Features
- N-Channel Power MOSFET 40 V, Infineon
- Infineon's discrete HEXFETR power MOSFET products include an N-channel device in a reed surface mount package and a form factor for almost any board layout or thermal design challenge. Benchmarking resistance across the range reduces conductive loss, enabling optimal system efficiency.
Spec
- Quantity:1bag(2pieces)
- Channel Type : N
- Maximum Continuous Drain Current : 400 A
- Maximum Drain Source Voltage : 40 V
- Maximum Drain Source Resistance : 1.25 mΩ
- Maximum Gate Threshold Voltage : 4V
- Minimum Gate Threshold Voltage : 2V
- Maximum Gate Source Voltage : -20 V, +20 V
- Package Type : D2PAK (TO-263)
- Mounting Type : Surface Mount
- Pin Count : 7 + Tab
- Channel Mode : Enhancement
- Category : Power MOSFET
- Maximum Power Dissipation : 380 W
- Minimum Operating Temperature : -55 °C
- CODE No.:130-0992
