Spec

• Output power:
• Input voltage range: 9.0 ~ 26.4 V
• Output Voltage: 3.3 ~ 12.6 V
• Output current: 2500 mA
• Efficiency (typ): 0.9
• Operating temperature range:? 20 to + 85 degrees C
• Dimensions: 21.3 x 5.5 x 17.7 (mm)
• SMD Type

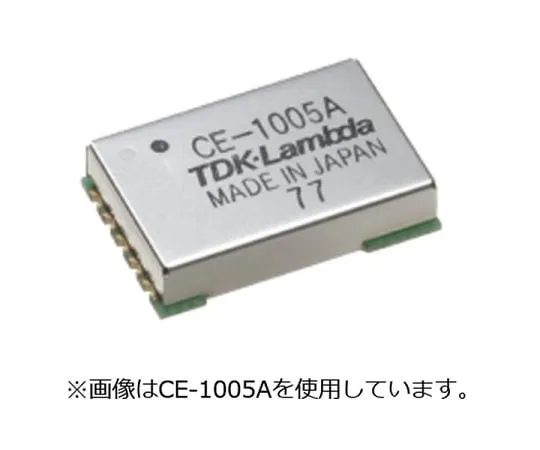

• Low profile 4.2 mm (CE -1005 A), 4.5 mm (CE -1003, 1004) and 5.5 mm (CE -1050) high
• ? Can be used in a wide temperature range of 40 to + 85 degrees Celsius (CE -1050? 20 ~ 85 degrees C)
• Built-in remote ON/OFF function
• Built-in output voltage variable function
• 5-sided metal shielded low noise design
• Supplied by tray or taping
• RoHS compliant
