Spec

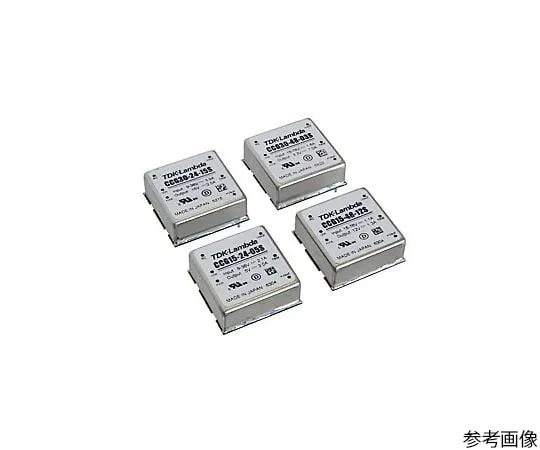

• It is a 23.1 W on-board DC-DC converter in a small 1 x 1 inch configuration. The mounting area is about 50% smaller than the company's previous products. It has a six-sided shield structure that takes noise into account, and the base as well as the metal case is shielded by substrate copper foil. There are 2 types of input voltage range: 9 V to 36 V and 18 V to 76 V.
• Lineup
• CCG30-24-03S/CCG30-24-05S/CCG30-24-12S/CCG30-24-15S
• CCG30-48-03S/CCG30-48-05S/CCG30-48-12S/CCG30-48-15S
• Key Specifications
• Model CCG 30 -24 CCG 30 -48
• Input Voltage 9 ~ 36 VDC 18 ~ 76 VDC
• Type 03 S05S 12 S 15 S 03 S05S 12 S 15 S
• Output Voltage (V) 3.3512153.351215
• Efficiency (%) 8689898987909091
• Output Current (A) 7.06.02.52.07.06.02.52.0
• Output Power (W) 23.130.030.030.023.130.030.030.0
• Output voltage variable range -10 to + 10%
• Operating ambient temperature -40 to + 85 degrees C
• Pressure-resistant input-output: 1500 VDC for 1 minute
• & nbsp; & nbsp; & nbsp; & nbsp; & nbsp; & nbsp; & nbsp; & nbsp; & nbsp; Input/Output - Case: 1000 VDC for 1 minute
• Safety Standard UL 60950 -1, CSA 60950 -1, EN 60950 -1
• Warranty period: 5 years
• RoHS compliant
