63-7019-45 XY2CE Grab Wire Switch With E-Stop, 2 x 35 → 2 x 100m, 2NC, 2NO XY2CEDA190
model:
63-7019-45
brand:
Telemecanique Sensors
Product Description
Product Model: 63-7019-45Product Brand: Telemecanique S […]
Contact Us
Product Details
Product Model: 63-7019-45
Product Brand: Telemecanique Sensors
Features

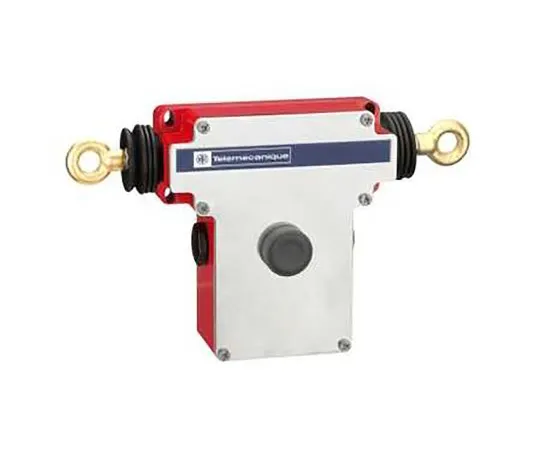

- Telemecanique XY2CED Dual Rope Switch for Emergency Stop
- The Telemecanique XY2CED Dual Rope Switch for Emergency Stop reduces the risk of worker injury and damage to machinery and products being manufactured. This dual-rope switch has 2 anchor points and supports and pulleys allow for 2 ropes of up to 100 m. If the normal emergency stop action is not available, it can be activated by a single manual operation. It also works if the trip wire is damaged.
- Features and Advantages: The switch incorporates an open operating contact on the + side, and the switch is actuated by the action on the + side. The switch is latched in the operating position (N/C safety contact open). The function of the N/O contact is to provide a reset button to close the signal only safety contact again and to restart the machine manual operation of the control device in the machine start circuit away from the trip wire switch Recommended distance between cable supports: 15 m
Spec
- Quantity:1piece
- Range : Preventa XY2
- Series : XY2CE
- Reset Button : Yes
- Pole Configuration : DPST
- Indicator Type : Rope Tension
- Maximum Rope Span : 2 x 35 → 2 x 100m
- Maximum Current : 3 A ac, 270 mA dc
- Maximum AC Voltage : 240V
- Maximum DC Voltage : 250V
- Housing Material : Stainless Steel (Cover), Zamak (Body)
- Number of Cable Entries : 3
- Size of Cable Entries : ISO M20, PG 13.5
- Width : 106mm
- CODE No.:130-0874
