Electronic/Electrical Parts and Controll Equipments

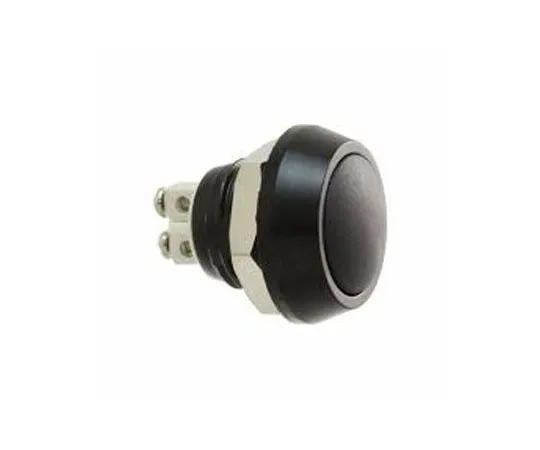

63-7017-32 Bulgin Single Pole Single Throw (SPST) Momentary Push Button Switch, IP67, Panel Mount, 36V dc MMP0120/ABKS
Product Description
Product Model: 63-7017-32Product Brand: Bulgin Features […]
Contact Us
Product Details
Product Model: 63-7017-32
Product Brand: Bulgin
Features
- Break Resistant Press Button Switch - MMP0120 Series
- Features and Advantages 12 mm in diameter, protruding dome shape Front panel with a sealed structure conforming to IP65, some (type including 67 in part code) also conforming to IP67 Illuminating type End selectable by *** of part code: S - screwed terminal, P -2 mm x 0.5 mm Pin terminal Part code allows selection of body material and button material: - Stainless steel body and buttons:/SSS - Nickel plated brass body and buttons:/NNB - Black anodized aluminum body:/A, and PBT button color selectable: RD - Red, GN - Green, BL - Blue, BK - Black
Spec
- Quantity:1piece
- Switch Operation : Momentary
- Mounting Type : Panel Mount
- Illuminated : No
- Contact Configuration : Single Pole Single Throw (SPST)
- Panel Cut Out Diameter : 12mm
- IP Rating : IP67
- Actuator Colour : Black
- Voltage Rating : 36V dc
- Contact Current Rating : 2 A
- Actuator Shape : Round
- Terminal Type : Screw
- Case Colour : Black
- CODE No.:127-8486
