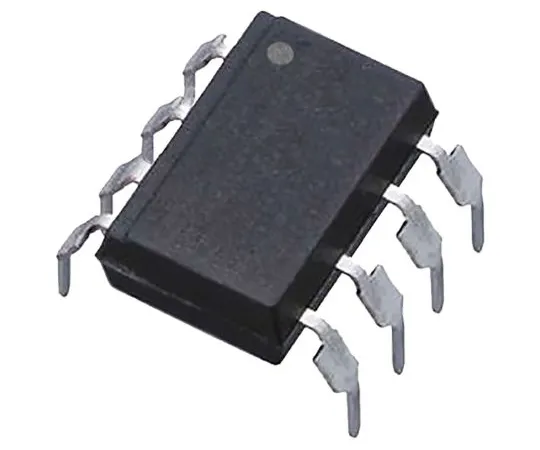

63-7017-05 Lite-On, LTV-3150-L-M DC Input IGBT, MOSFET Output Optocoupler, Surface Mount, 8-Pin DIP LTV-3150-L-M
Product Description
Product Model: 63-7017-05Product Brand: Lite-On Feature […]
Contact Us
Product Details
Product Model: 63-7017-05
Product Brand: Lite-On
Features
- Lite-On optocoupler specially designed for gate drive optocoupler, Lite-On MOSFET and IGBT gate drive applications. This integrated device includes a push-pull output stage that can directly drive most MOSFETs and IGBTs at a maximum rating of 1200 V and 50 A. Main applications include motor control and driving power system inverters.
- Minimum peak output current: 0.8 A rail-to-rail output voltage swing isolation rating: 5000 V RMS
Spec
- Quantity:1bag(5pieces)
- Mounting Type : Surface Mount
- Output Device : IGBT, MOSFET
- Maximum Forward Voltage : 1.8V
- Number of Channels : 1
- Number of Pins : 8
- Package Type : DIP
- Input Current Type : DC
- Typical Rise Time : 42 (Output) ns, 500 (Input) ns
- Maximum Input Current : 25 mA
- Isolation Voltage : 5000 (Minimum) Vrms
- Logic Output : Yes
- Typical Fall Time : 50 (Output) ns, 500 (Input) ns
- Series : LTV-3150-L
- CODE No.:127-8458
