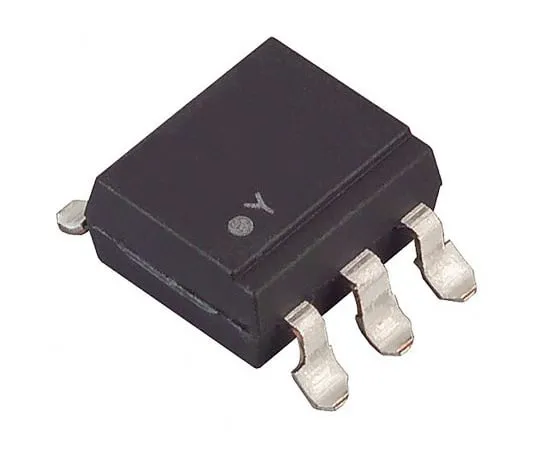

63-7016-30 Lite-On, CNY17-1S-TA1 DC Input Transistor Output Optocoupler, Surface Mount, 6-Pin PDIP CNY17-1S-TA1
Product Description
Product Model: 63-7016-30Product Brand: Lite-On Feature […]
Contact Us
Product Details
Product Model: 63-7016-30
Product Brand: Lite-On
Features
- CNY17/4 N25/4 N35 Series Optocoupler
- Single-channel optocoupler product with Lite-On phototransistor output. This 6-pin device provides access to the phototransistor base and is available with a minimum current transfer rate of 20% up to 160%. This product has a through hole package option and a surface mount package option.
- breakdown voltage: 4 N26/4 N36 series 1.5 kV 4 N25 series 2.5 kV 4 N35 series 3.55 kV CNY-17 series 5 kV
Spec
- Quantity:1bag(50pieces)
- Mounting Type : Surface Mount
- Output Device : Transistor
- Maximum Forward Voltage : 1.65V
- Number of Channels : 1
- Number of Pins : 6
- Package Type : PDIP
- Input Current Type : DC
- Typical Rise Time : 5µs
- Maximum Input Current : 60 mA
- Isolation Voltage : 5000 Vrms
- Maximum Current Transfer Ratio : 80%
- Typical Fall Time : 5µs
- Series : CNY17
- CODE No.:127-8377
