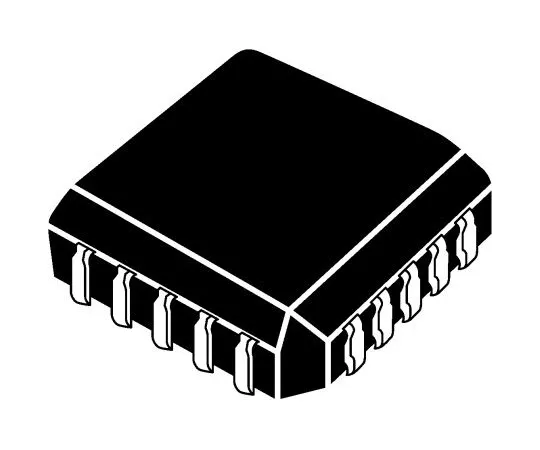

63-7013-37 Microchip, 1Mbit FPGA Configuration EEPROM 20-Pin PLCC Serial-2 Wire AT17LV010-10JU
Product Description
Product Model: 63-7013-37Product Brand: Microchip Featu […]
Contact Us
Product Details
Product Model: 63-7013-37
Product Brand: Microchip
Features
- AT17 FPGA Configuration EEPROM
- The AT17LV Series EEPROM (Configurator) is an easy-to-*** and cost-effective configuration memory for field-programmable gate arrays (FPGA).
- Compatible products: Atmel AT6000, AT40K and AT94K devices, Altera FLEXR, APEX devices, ORCAR, XilinxR XC3000, XC4000, XC5200, SpartanR, Virtex FPGA Cascadable read back to support additional configurations or high-density arrays Programmable reset polarity Low power standby mode 2 wire serial bus in-system programmable (ISP)
Spec
- Quantity:1piece
- Memory Size : 1Mbit
- Interface Type : Serial-2 Wire
- Package Type : PLCC
- Mounting Type : Through Hole
- Pin Count : 20
- Organisation : 1M x 1 bit
- Minimum Operating Supply Voltage : 3 V
- Maximum Operating Supply Voltage : 5.5 V
- Programming Voltage : 3.0 → 5.5V
- Number of Bits per Word : 1bit
- Length : 9.04mm
- Width : 9.04mm
- Height : 4.06mm
- Dimensions : 9.04 x 9.04 x 4.06mm
- Maximum Operating Temperature : +85 °C
- CODE No.:127-2677
