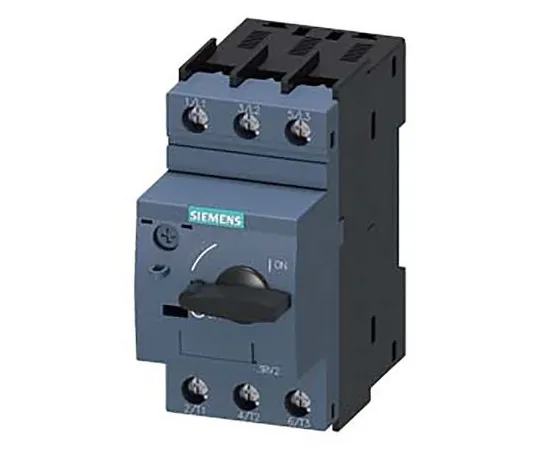

63-7012-13 Siemens Sirius Innovation 690 V ac Circuit Protection, 3P Channels, 0.9 → 1.25 A, 100 kA @ 690 V ac 3RV2021-0KA10
Product Description
Product Model: 63-7012-13Product Brand: Siemens Feature […]
Contact Us
Product Details
Product Model: 63-7012-13
Product Brand: Siemens
Features
- Motor Circuit Breaker 3RV20
- Motor Protection Circuit Breaker Screw Connection/Spring Clamp Class 10 Impulse Withstand Voltage 6 kV Insulation Voltage: 690 V Actual Loss Power 6/7 W Only Standard Switching Capacity Approved: CE/UL/CSA
Spec
- Quantity:1piece
- Current Range : 0.9 → 1.25 A
- Number of Poles : 3
- Range : Sirius Innovation
- Breaking Capacity : 100 kA @ 690 V ac
- Terminal Type : Screw
- Voltage Rating : 690 V ac
- Reset Method : Manual
- Length : 45mm
- Width : 96.9mm
- Depth : 97mm
- Dimensions : 45 x 96.9 x 97 mm
- Series : 3RV2
- CODE No.:127-1496
