Features

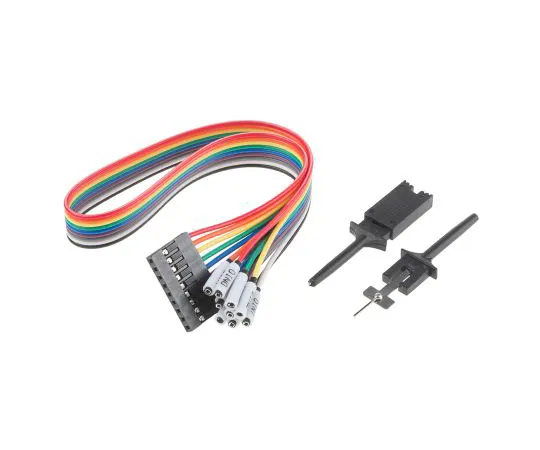

• Logic Analyzer Basic for Red Pitaya STEMLab
• The Logic Analyzer Basic application enables you to view the binary status of digital signals. In addition to processing pure binary signals, such as the GPIO output of a Raspberry Pi or Arduino board, Logic Analyzer can analyze different b***s (I2C, SPI, and UART) and decode transmitted data. All Red Pitaya applications are web-based and do not require native software installation. Users can access it through a web browser using a smartphone, tablet, or PC running a common operating system (MAC, Linux, Windows, Android, and iOS).
• Graphical User Interface The Logic Analyzer Basic graphical ***r interface fits well with the overall design of the Red Pitaya application and provides the same operating concepts.
