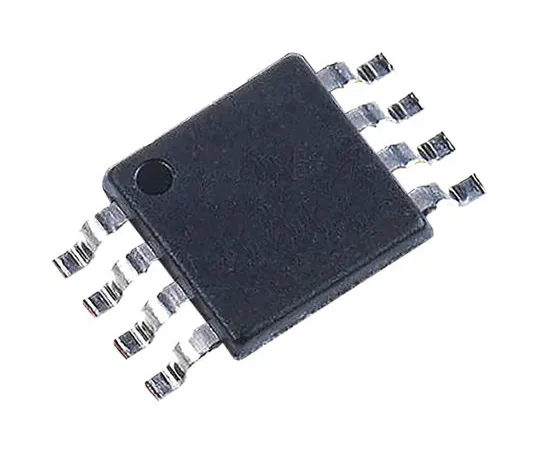

63-7005-91 NCS2325DMR2G ON Semiconductor, Zero Drift, Op Amp, RRIO, 350kHz 350 kHz, 1.8 → 5.5 V, 8-Pin MSOP NCS2325DMR2G
model:
63-7005-91
brand:
ON Semiconductor
Product Description
Product Model: 63-7005-91Product Brand: ON Semiconducto […]
Contact Us
Product Details
Product Model: 63-7005-91
Product Brand: ON Semiconductor
Features
- NCS2325, 50 μV offset, 35 μA, 0 drift op-amp, ON Semiconductor
- Continuous calibration at 0 drift 0.25 μV/°C (maximum) Static current: 35 μA (maximum) Low noise: 1 μVpp rail-to-rail input/output
Spec
- Quantity:1bag(5pieces)
- Amplifier Type : Zero Drift
- Mounting Type : Surface Mount
- Package Type : MSOP
- Power Supply Type : Single
- Number of Channels per Chip : 2
- Pin Count : 8
- Typical Single Supply Voltage : 1.8 → 5.5 V
- Typical Gain Bandwidth Product : 350kHz
- Typical Slew Rate : 0.16V/µs
- Maximum Operating Frequency : 350 kHz
- Maximum Operating Temperature : +150 °C
- Maximum Input Voltage : 0.3 V
- CODE No.:126-3464
