Features

• ENEC, UL, cUL, CQC

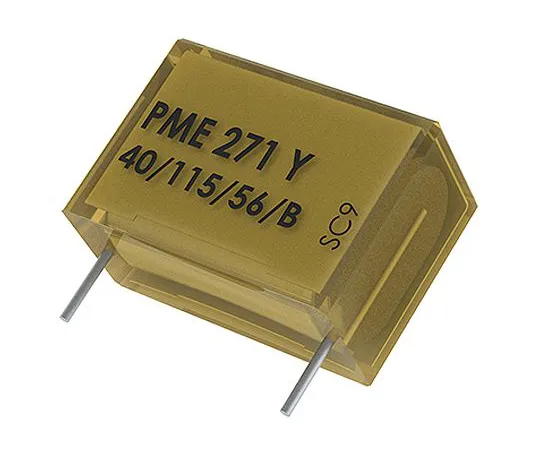

• PME271Y A-E Series
• PME271Y A-E Series is a Class Y suppression capacitor made of self-recovering multilayer metallized paper. It is constructed using epoxy-impregnated metallized paper and is contained in epoxy resin. This provides excellent stability and reliability, especially for applications requiring continuous operation, as well as flame- and flame-resistance.
• Features: International Certified Rated Voltage: 300 V ac @ 50/60 Hz Capacitance Range: 0.001 → 0.15 μF Lead spacing: 10.2 → 25.4 mm Capacitance Tolerance: ± 20% Weatherproof Category: 40/115/56/B, IEC 60068-1 Tape and Reel Packaging Complies with IEC602862 RoHS and Lead-Free Termination Operating Temperature Range: -40 → +115 C 100% Screening Factory Test @ 3000 V dc Achieves the Highest Possible Safety in terms of Flame Generation and Flame Resistance Due to its excellent self-recovery properties, the dielectric properties of the long-life impregnated material provide excellent resistance to ionizationHigh dV/dt Capacity
• Applications: Typical applications include worldwide *** as an electromagnetic interference suppressor for all Y2 applications (line-ground).
