63-7002-32 Eccel Technology Ltd RFID RFID Module, Reader, Transponder, Writer - RFID-A1 (00319) RFID-A1 (00319)
Electronic/Electrical Parts and Controll Equipments

63-7002-32 Eccel Technology Ltd RFID RFID Module, Reader, Transponder, Writer - RFID-A1 (00319) RFID-A1 (00319)

model: 63-7002-32
brand: Eccel Technology Ltd

Product Description

Product Model: 63-7002-32Product Brand: Eccel Technolog […]

Contact Us

Hotline

18866622123

WeChat

WeChat ID: 18866622123

WeChat QR Code

Product Details

Product Model: 63-7002-32
Product Brand: Eccel Technology Ltd

Features

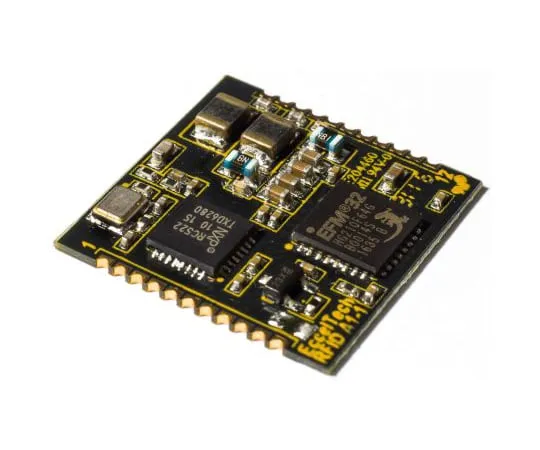

  • RFID-A1 Module The RFID A1 module is a 13.56 MHz subassembly from Eccel Technology Ltd. This product is suitable for embedded applications that require RFID functionality. A low power ARM microcontroller is installed on the board to manage the RFID configuration setup. It also provides a powerful command interface.
  • Features: Mifare Classic, Ultralight, and NTAG2 compatible low-cost RFID reader
  • Command interface via I2C and SPI
  • I2C maximum speed 400 kHz
  • SPI maximum speed 500 kHz
  • Compact form factor
  • Castering SMT pads for easy and reliable substrate mounting
  • Transponder with high read/write speed
  • Low power design
  • Single operating voltage: 2.5 → 3.6 V
  • Operating temperature range: -25 → 85 °C
  • AES-128 encryption engine
  • RoHS compatible
  • Use:
  • Access control
  • Article monitoring
  • Consumables approval and monitoring
  • Prepayment system
  • Resource management
  • Contactless data storage system

Spec

  • Quantity:1piece
  • Component Type : Reader, Transponder, Writer
  • Supported Bus Interfaces : I2C, SPI
  • Supply Voltage : 2.5 → 3.6V
  • Series : RFID
  • Length : 20.32mm
  • Maximum Operating Temperature : +85°C
  • Minimum Operating Temperature : -25°C
  • Width : 20.06mm
  • CODE No.:126-2176
