Features

• EN55022 Class A, FCC Level A

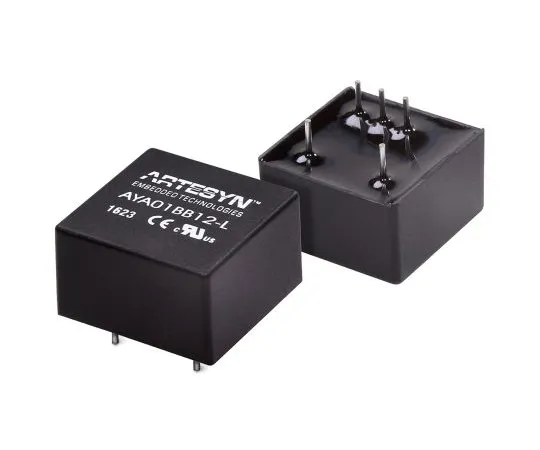

• Artesyn AYA Series DC/DC Converter
• The AYA series 3 W insulated DC-DC converter consists of 28 variations. Each product is available in a small dual in-line package for through-hole mounting or small surface mounting packages. These products feature a wide range of input voltages (4.5 → 10 V, 9 → 18 V, 18 → 36 V, and 36 → 75 V inputs). The converter ***s 100 kHz fixed-frequency switching for up to 80% conversion efficiency and minimizes the need for external EMI filtering. Typical applications for this series include data communications, telecommunications, computer peripherals, industrial automation, and mobile battery powered systems.
• Features and Benefits: Micro DIP Package 14 x 14 x 8.0 mm (0.55 x 0.55 x 0.31 in) Maximum Efficiency: 87% I/O Insulation 1500 V dc 2:1 Wide Input Range Single/Dual Output Operating Temperature Range -40 → 85 (DIP Module) Continuous (Hicap Mode) Remote On/Off Output Short Circuit Protection
