63-7001-40 Bourns CDDFN10-0516P, Hex-Element Uni-Directional TVS Diode Array, 10-Pin DFN CDDFN10-0516P
Product Description
Product Model: 63-7001-40Product Brand: Bourns Features […]
Contact Us
Product Details
Product Model: 63-7001-40
Product Brand: Bourns
Features

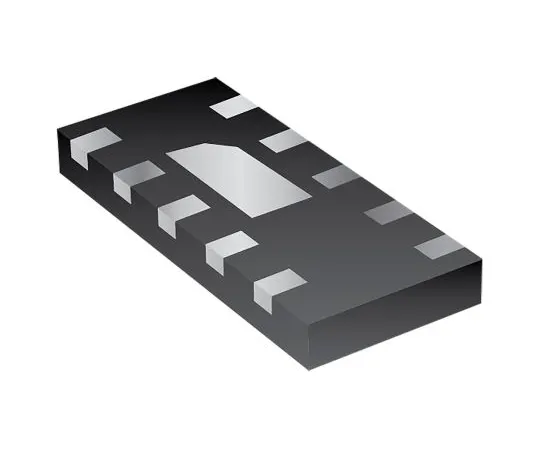

- CDDFN10-0516P SMT TVS Diode ESD Protection Array
- The CDDFN10-0516P device from Bourns Electronics provides ESD protection for high-speed data ports. This TVS array complies with the requirements of IEC61000-4-2 (Level 4) and supports USB 3.1. The small footprint DFN10 package provides very low capacitance between I/O lines (typically only 0.02 pF) and is ideal for *** on high-speed interfaces.
Spec
- Quantity:1bag(25pieces)
- Direction Type : Uni-Directional
- Maximum Clamping Voltage : 6.5V
- Minimum Breakdown Voltage : 4.5V
- Mounting Type : Surface Mount
- Package Type : DFN
- Maximum Reverse Stand-off Voltage : 5V
- Pin Count : 10
- Maximum Peak Pulse Current : 4A
- ESD Protection : Yes
- Number of Elements per Chip : 6
- Minimum Operating Temperature : -40 °C
- Maximum Operating Temperature : +85 °C
- Capacitance : 22pF
- CODE No.:126-1757
