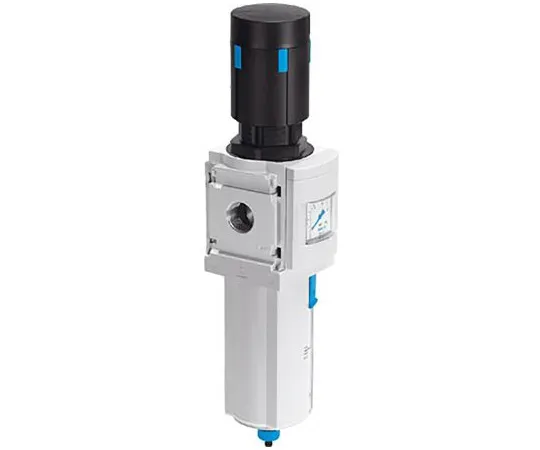

63-6998-19 Festo MS6-LFR Filter Regulator 40μm G 1/4, 10 bar MS6-LFR-1/4-D7-ERM-AS
Electronic/Electrical Parts and Controll Equipments

63-6998-19 Festo MS6-LFR Filter Regulator 40μm G 1/4, 10 bar MS6-LFR-1/4-D7-ERM-AS

model: 63-6998-19
brand: Festo

Product Description

Product Model: 63-6998-19Product Brand: Festo Features […]

Contact Us

Hotline

18866622123

WeChat

WeChat ID: 18866622123

WeChat QR Code

Product Details

Product Model: 63-6998-19
Product Brand: Festo

Features

  • MS-LFR Series Filter Adjustment Valve
  • Combined pressure adjustment valve and filter are made by Festo. MS4 and MS6 pneumatic filters remove pollutants with particle sizes up to 5 or 40 μm (dep***ing on the filter cartridge) from compressed air. Available in 0.3 to 7 bar and 0.5 to 12 bar pressure ranges, the MS series filter regulator has a high flow rate and integrated return flow from port 2 to port 1. Available in G1/8 or G1/4 ports Features and benefits: Adjustable return flow to constant output pressure Fully automatic or manual drain selectable Plastic or fully integrated metal vault guard Can mount an LCD display analog pressure gauge or sensor Detented rotary knob can be locked to prevent changes in settings

Spec

  • Quantity:1piece
  • Manufacturer Series : MS6-LFR
  • Port Connection : G 1/4
  • Drain Type : Manual
  • Filtration Size : 40µm
  • Pressure Gauge Port : G 1/4
  • Pressure Gauge Port Thread Size : 1/4 in
  • Port Connection Thread Size : 1/4 in
  • Maximum Operating Pressure : 10 bar
  • Maximum Ambient Operating Temperature : +60°C
  • Minimum Process Operating Temperature : -10 °C, 0 (UL) °C
  • Minimum Operating Pressure : 0.8bar
  • Minimum Ambient Operating Temperature : -10°C
  • CODE No.:125-9941
