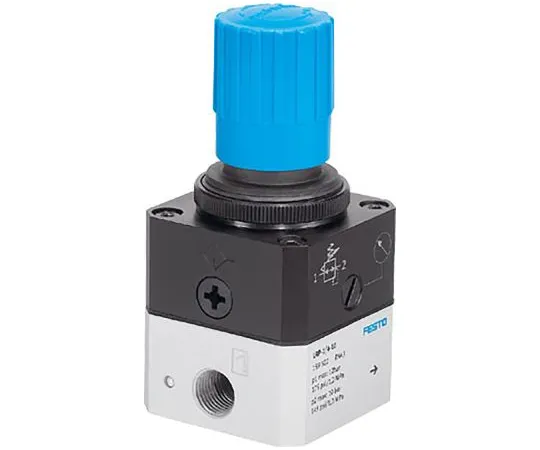

63-6997-82 Festo Pneumatic Regulator 800 to 2300L/min G 1/4, 1 to 12bar LRP-1/4-0,7
Product Description
Product Model: 63-6997-82Product Brand: Festo Features […]
Contact Us
Product Details
Product Model: 63-6997-82
Product Brand: Festo
Features
- LRP Series Precision Pressure Regulator Valves
- FESTO LRP series precision pressure regulator valves are ideal for high sensitivity applications where 0.02 bar hysteresis is required. The outlet pressure can be set within the range of the pressure regulator. If the compressed air supply fails, release the outlet pressure from the secondary vent connection.
- Precise pressure adjustment in both static and dynamic applications Almost completely compensable for operating pressure unevenness. Good response characteristics even when operating pressure and flow rate are changed rapidly
Spec
- Quantity:1piece
- Port Connection : G 1/4
- Minimum Outlet Pressure : 1bar
- Maximum Outlet Pressure : 12bar
- Maximum Input Pressure : 7bar
- Port Connection Thread Size : 1/4 in
- Maximum Flow Rate : 2300L/min
- Typical Flow Rate : 800 to 2300L/min
- Port Connection Thread Standard : G
- Minimum Operating Temperature : -10°C
- Maximum Operating Temperature : +60°C
- Overall Width : 50mm
- CODE No.:125-9902
