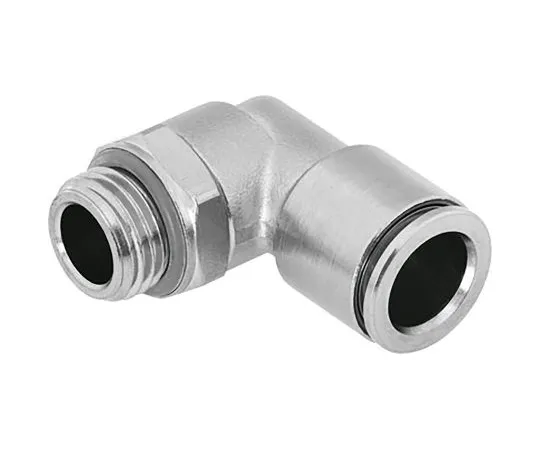

63-6997-21 Festo Elbow Connector, G 1/8 Male, Push In 6 mm NPQH-L-G18-Q6-P10
Product Description
Product Model: 63-6997-21Product Brand: Festo Features […]
Contact Us
Product Details
Product Model: 63-6997-21
Product Brand: Festo
Features
- NPQH Screw - Tube Elbow Push-In Joints
- The Festo NPQH series push-in elbow connectors are designed for easy tube connection and provide a reliable seal. The compact design is ideal for pneumatic applications with temperatures up to 150 °C and pressures up to 20 bar. The NPQH series is an all-metal push-in joint made of brass chemically plated with nickel and is safe for *** in the food industry. Features high corrosion resistance (CRC3) and chemical resistance.
- Features and Advantages: Quick and easy tube insertion
- Made of metal
- High heat resistance
- Detergent resistance
- FDA compliant
- High rated pressure
Spec
- Quantity:1bag(10pieces)
- Connection Style : Threaded-to-Tube
- Connector A : G 1/8
- Connector B : Push In 6 mm
- Connector A - G***er : Male
- Body Material : Brass
- Angle : 90°
- Swivel Connection : Yes
- Mounting Type : Inline
- Manufacturer Series : NPQH
- Maximum Operating Pressure : 20 bar
- Maximum Operating Temperature : +150°C
- Minimum Operating Temperature : 0°C
- Thread Material : Brass
- Chemical Resistant : Yes
- CODE No.:125-9840
