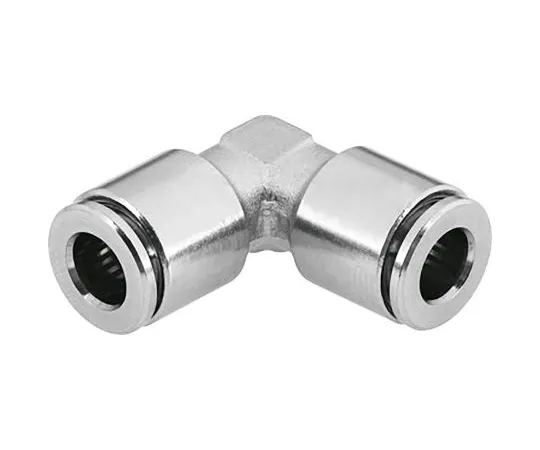

63-6997-12 Festo Pneumatic Elbow Tube-to-Tube Adapter Push In 4 mm to Push In 4 mm NPQH-L-Q4-E-P10
Product Description
Product Model: 63-6997-12Product Brand: Festo Features […]
Contact Us
Product Details
Product Model: 63-6997-12
Product Brand: Festo
Features
- Elbow Push-In Joints between NPQH Tubes
- The Festo NPQH series push-in elbow connectors are designed for easy tube connection and provide a reliable seal. The compact design is ideal for pneumatic applications with temperatures up to 150 °C and pressures up to 20 bar. The NPQH series is an all-metal push-in joint made of brass chemically plated with nickel and is safe for *** in the food industry. Features high corrosion resistance (CRC3) and chemical resistance.
- Features and Advantages: Quick and easy tube insertion
- Made of metal
- High heat resistance
- Detergent resistance
- FDA compliant
- High rated pressure
Spec
- Quantity:1bag(10pieces)
- Tube Connection A : Push In 4 mm
- Tube Connection B : Push In 4 mm
- Finish : Nickel Plated
- Maximum Operating Pressure : 20 bar
- Tube Connection A - Type : Push In
- Chemical Resistant : Yes
- Tube Connection B - Type : Push In
- Maximum Operating Temperature : +150°C
- Minimum Operating Temperature : 0°C
- Tube Connection A - Tube Size : 4mm
- Connection Style : Tube-to-Tube
- CODE No.:125-9776
