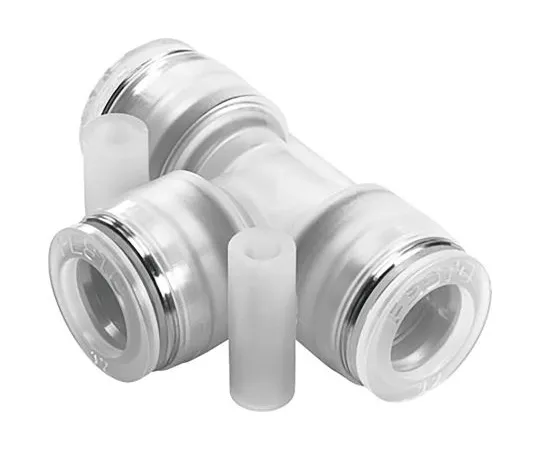

63-6996-66 Festo Pneumatic Tee Tube-to-Tube Adapter, Push In 6 mm x Push In 6 mm x Push In 6 mm , Food Grade , Chemical Resistant NPQP-T-Q6-E-FD-P10
Product Description
Product Model: 63-6996-66Product Brand: Festo Features […]
Contact Us
Product Details
Product Model: 63-6996-66
Product Brand: Festo
Features
- NPQP Push-in Tea Connectors
- The Festo NPQP series push-in tea connectors are designed for easy tube connection and provide a reliable seal. A polypropylene joint for *** in applications where the effects of media are severe. Ideal for pneumatic applications with a temperature range of up to 60 °C and a pressure range of up to 10 bar. Features high corrosion resistance (CRC3) and chemical resistance. The NPQP series is an alternative to stainless steel fittings suitable for the food and beverage industry, biotechnology/pharmaceutical, medical technology, clean rooms and process automation.
- Features and Benefits: Quick and easy tube insertion
- Polypropylene housing with stainless steel tube retainer
- Corrosion resistance
- Chemical product resistance
- FDA compliant
- Transparent for easy monitoring
Spec
- Quantity:1bag(10pieces)
- Tube Connection A : Push In 6 mm
- Tube Connection B : Push In 6 mm
- Branch Tube Connection : Push In 6 mm
- Body Material : Polypropylene
- Maximum Operating Pressure : 10 bar
- Chemical Resistant : Yes
- Tube Connection B - Type : Push In
- Tube Connection A - Tube Size : 6mm
- Tube Connection B - Tube Size : 6mm
- Branch Tube Connection - Tube Size : 6mm
- Minimum Operating Temperature : -20°C
- Branch Tube Connection - Type : Push In
- Connection Style : Tube-to-Tube
- CODE No.:125-9730
