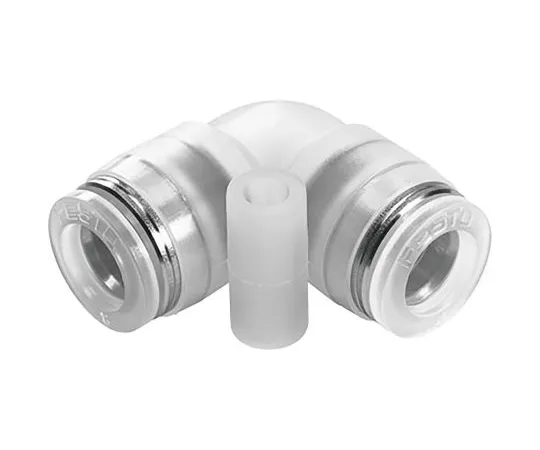

63-6996-60 Festo Pneumatic Elbow Tube-to-Tube Adapter Push In 4 mm to Push In 4 mm NPQP-L-Q4-E-FD-P10
Product Description
Product Model: 63-6996-60Product Brand: Festo Features […]
Contact Us
Product Details
Product Model: 63-6996-60
Product Brand: Festo
Features
- Elbow Push-In Joints between NPQP Tubes
- The Festo NPQP series push-in elbow connectors are designed for easy tube connection and provide a reliable seal. A polypropylene joint for *** in applications where the effects of media are severe. Ideal for pneumatic applications with a temperature range of up to 60 °C and a pressure range of up to 10 bar. Features high corrosion resistance (CRC3) and chemical resistance. The NPQP series is an alternative to stainless steel fittings suitable for the food and beverage industry, biotechnology/pharmaceutical, medical technology, clean rooms and process automation.
- Features and Benefits: Quick and easy tube insertion
- Polypropylene housing with stainless steel tube retainer
- Corrosion resistance
- Chemical product resistance
- FDA compliant
- Transparent for easy monitoring
Spec
- Quantity:1bag(10pieces)
- Tube Connection A : Push In 4 mm
- Tube Connection B : Push In 4 mm
- Body Material : Polypropylene
- Maximum Operating Pressure : 10 bar
- Tube Connection A - Type : Push In
- Food Grade : Yes
- Tube Connection B - Type : Push In
- Maximum Operating Temperature : +60°C
- Minimum Operating Temperature : -20°C
- Tube Connection A - Tube Size : 4mm
- Connection Style : Tube-to-Tube
- CODE No.:125-9724
