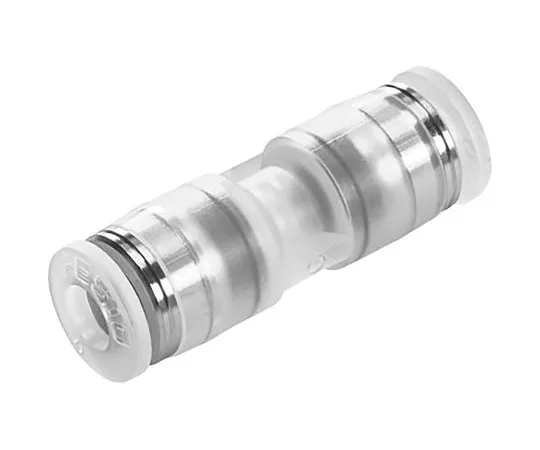

63-6996-53 Festo Pneumatic Straight Tube-to-Tube Adapter, Push In 8 mm NPQP-D-Q8-E-FD-P10
Product Description
Product Model: 63-6996-53Product Brand: Festo Features […]
Contact Us
Product Details
Product Model: 63-6996-53
Product Brand: Festo
Features
- NPQP Straight Push-in Connectors
- The Festo NPQP series push-in connectors are designed for easy tube connection and provide a reliable seal. A polypropylene joint for *** in applications where the effects of media are severe. Ideal for pneumatic applications with a temperature range of up to 60 °C and a pressure range of up to 10 bar. Features high corrosion resistance (CRC3) and chemical resistance. The NPQP series is an alternative to stainless steel fittings suitable for the food and beverage industry, biotechnology/pharmaceutical, medical technology, clean rooms and process automation.
- Features and Benefits: Quick and easy tube insertion
- Polypropylene housing with stainless steel tube retainer
- Corrosion resistance
- Chemical product resistance
- FDA compliant
- Transparent for easy monitoring
Spec
- Quantity:1bag(10pieces)
- Tube Connection A : Push In 8 mm
- Tube Connection B : Push In 8 mm
- Body Material : Polypropylene
- Maximum Operating Pressure : 10 bar
- Minimum Operating Temperature : -20°C
- Tube Connection B - Type : Push In
- Tube Connection A - Tube Size : 8mm
- Tube Connection A - Type : Push In
- Tube Connection B - Tube Size : 8mm
- Maximum Operating Temperature : +60°C
- Connection Style : Tube-to-Tube
- CODE No.:125-9717
