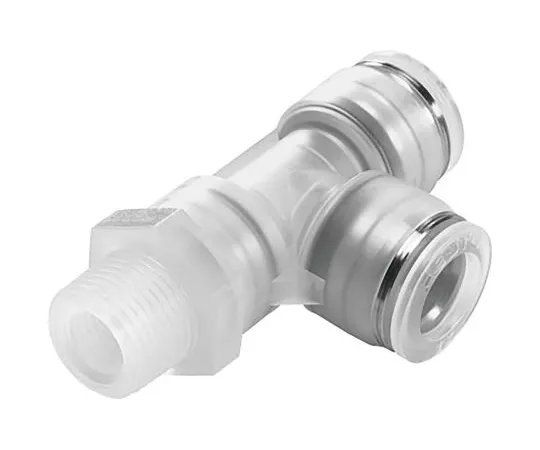

63-6996-25 Festo Pneumatic Tee Threaded-to-Tube Adapter, 4mm, 10 bar NPQP-LQ-R14-Q4-FD-P10
Product Description
Product Model: 63-6996-25Product Brand: Festo Features […]
Contact Us
Product Details
Product Model: 63-6996-25
Product Brand: Festo
Features
- NPQP Screw-Tube Tea Connector
- The Festo NPQP series push-in tea connector is designed for easy tube connection and provides a reliable seal. A polypropylene joint for *** in applications where the effects of media are severe. Ideal for pneumatic applications with a temperature range of up to 60 °C and a pressure range of up to 10 bar. Features high corrosion resistance (CRC3) and chemical resistance. The NPQP series is an alternative to stainless steel fittings suitable for the food and beverage industry, biotechnology/pharmaceutical, medical technology, clean rooms and process automation.
- Features and Benefits: Quick and easy tube insertion
- Polypropylene housing with stainless steel tube retainer
- Corrosion resistance
- Chemical product resistance
- FDA compliant
- Transparent for easy monitoring
Spec
- Quantity:1bag(10pieces)
- Connection Style : Threaded-to-Tube
- Connector A : R 1/4
- Connector B : Push In 4 mm
- Branch Connector : Push In 4 mm
- Connector A - G***er : Male
- Manufacturer Series : NPQP
- Body Material : Polypropylene
- Maximum Operating Pressure : 10 bar
- Maximum Operating Temperature : +60°C
- Minimum Operating Temperature : -20°C
- Chemical Resistant : Yes
- Food Grade : Yes
- CODE No.:125-9689
