63-6995-98 Festo NPQH Pneumatic Y Tube-to-Tube Adapter, Push In 8 mm x Push In 6 mm x Push In 6 mm NPQH-Y-Q8-Q6-P10
Product Description
Product Model: 63-6995-98Product Brand: Festo Features […]
Contact Us
Product Details
Product Model: 63-6995-98
Product Brand: Festo
Features

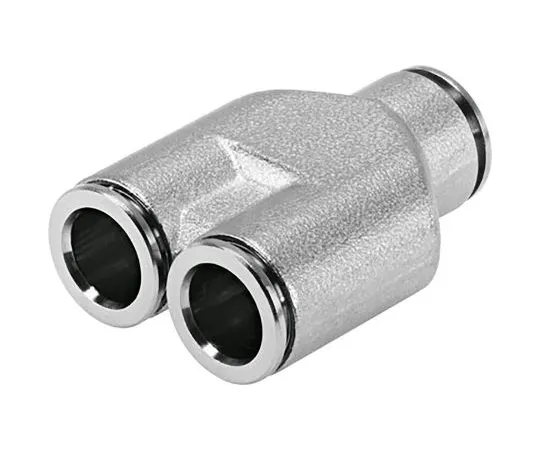

- NPQH Push-in Y-Connector
- The Festo NPQH series push-in Y-connector is designed for easy tube connection and provides a reliable seal. The compact design is ideal for pneumatic applications with temperatures up to 150 °C and pressures up to 20 bar. The NPQH series is an all-metal push-in joint made of brass chemically plated with nickel and is safe for use in the food industry. Features high corrosion resistance (CRC3) and chemical resistance.
- Features and Advantages: Quick and easy tube insertion
- Made of metal
- High heat resistance
- Detergent resistance
- FDA compliant
- High rated pressure
Spec
- Quantity:1bag(10pieces)
- Manufacturer Series : NPQH
- Tube Connection A : Push In 8 mm
- Tube Connection B : Push In 6 mm
- Tube Connection C : Push In 6 mm
- Body Material : Brass
- Thread Material : Brass
- Maximum Operating Pressure : 20 bar
- Chemical Resistant : Yes
- Tube Connection B - Type : Push In
- Maximum Operating Temperature : +150°C
- Tube Connection A - Type : Push In
- Minimum Operating Temperature : 0°C
- Tube Connection A - Tube Size : 8mm
- Tube Connection C - Tube Size : 6mm
- Connection Style : Tube-to-Tube
- CODE No.:125-9663
