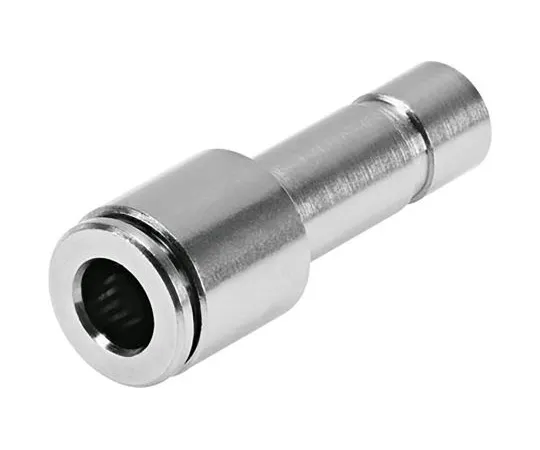

63-6995-12 Festo Pneumatic Straight Tube-to-Tube Adapter, Push In 14 mm NPQH-D-S14-Q12-P10
Product Description
Product Model: 63-6995-12Product Brand: Festo Features […]
Contact Us
Product Details
Product Model: 63-6995-12
Product Brand: Festo
Features
- NPQH Straight Push-In Connectors
- The Festo NPQH series push-in connectors are designed for easy tube connection and provide a reliable seal. The compact design is ideal for pneumatic applications with temperatures up to 150 °C and pressures up to 20 bar. The NPQH series is an all-metal push-in joint made of brass chemically plated with nickel and is safe for *** in the food industry. Features high corrosion resistance (CRC3) and chemical resistance.
- Features and Advantages: Quick and easy tube insertion
- Made of metal
- High heat resistance
- Detergent resistance
- FDA compliant
- High rated pressure
Spec
- Quantity:1bag(10pieces)
- Tube Connection A : Push In 14 mm
- Tube Connection B : Push In 12 mm
- Finish : Nickel Plated
- Maximum Operating Pressure : 20 bar
- Minimum Operating Temperature : 0°C
- Tube Connection B - Type : Push In
- Tube Connection A - Tube Size : 14mm
- Tube Connection A - Type : Push In
- Tube Connection B - Tube Size : 12mm
- Maximum Operating Temperature : +150°C
- Connection Style : Tube-to-Tube
- CODE No.:125-9576
