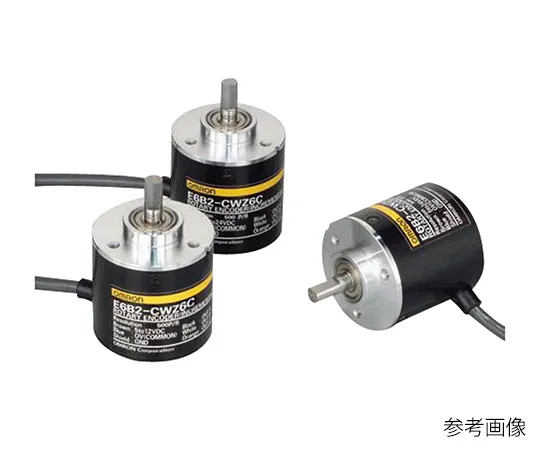

62-4679-10 Rotary Encoder Incremental E6B2-C E6B2-CWZ6C 500P/R 2M
Product Description
Product Model: 62-4679-10Product Brand: OMRON Corporati […]
Contact Us
Product Details
Product Model: 62-4679-10
Product Brand: OMRON Corporation
Features
- This rotary encoder outputs a pulse train according to the rotational displacement of the shaft.
Spec
- Specification: Incremental type
- Power supply voltage: 5 VDC (-5%) to 24 V (+ 15%), ripple (p-p) 5% or less
- Current consumption: 80 mA or less
- Output capacity: Applied voltage/DC 30 V or less, sink current/35 mA or less, residual voltage/0.4 V or less (When the sink current is 35 mA)
- Resolution (Pulse/Rotation): 500
- Material: Case/ABS Plastic, Body/Aluminum, Shaft/SUS 420 J2
- Standard code length: 500 mm
