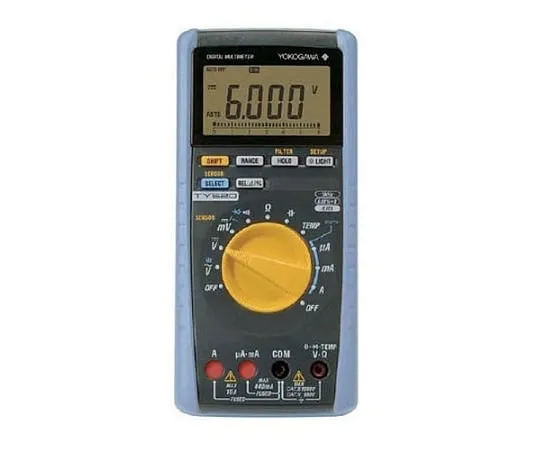

1-2100-01 Digital Multimeter TY520
Product Description
Product Model: 1-2100-01Product Brand: Yokogawa Electri […]
Contact Us
Product Details
Product Model: 1-2100-01
Product Brand: Yokogawa Electric Corporation
Features
- It is a multimeter that can measure capacitance and temperature in addition to voltage, current and resistance.
- Comes with easy-to-read bar graph display (31 levels).
Spec
- DC voltage, AC voltage: 600mV, 6V, 60V, 600V, 1000V
- DC current, AC current: 600μA, 6000μA, 60mA, 600mA, 6A, 10A
- Resistance: 600Ω, 6kΩ, 60kΩ, 600kΩ, 6MΩ, 60MΩ
- Frequency: 10.00 - 99.99Hz, 90.0 - 999.9Hz, 0.900 - 9.999Hz, 9.00 - 99.99kHz
- Capacitance: 10nF, 100nF, 1μF, 10μF, 100μF, 1000μF
- Temperature: -50 - 600℃
- Function: Data hold, deviation/% calculation, auto power off, backlight
- Withstand voltage: 6.88kV for 5 seconds
- Power supply: AA battery x 4 (included for test)
- Weight: Approximately 570g (including cell)
- Safety standards EN61010-1, CATIII1000V, CATIV 600V
- EMC standards: EN61326-1, EN55011 Class B
- Accessories: Test lead x 1 set, f*** (440mA/1000V and 10A/1000V)
- Size: 90 x 49 x 192mm
- Weight: Approx 570g
- Model number: TY520
