Electronic/Electrical Parts and Controll Equipments

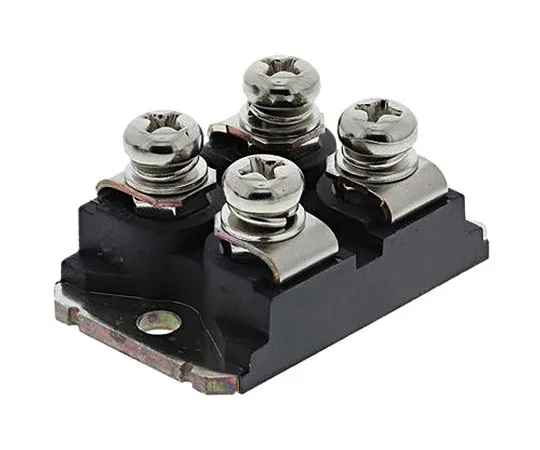

63-6990-74 IXFN360N10T N-Channel MOSFET, 360 A, 100 V GigaMOS Trench HiperFET, 4-Pin SOT-227 IXYS IXFN360N10T
Product Description
Product Model: 63-6990-74Product Brand: IXYS Features N […]
Contact Us
Product Details
Product Model: 63-6990-74
Product Brand: IXYS
Features
- N-Channel Power MOSFET, IXYS HiperFET GigaMOS Series
Spec
- Quantity:1piece
- Channel Type : N
- Maximum Continuous Drain Current : 360 A
- Maximum Drain Source Voltage : 100 V
- Maximum Drain Source Resistance : 2.6 mΩ
- Maximum Gate Threshold Voltage : 4.5V
- Minimum Gate Threshold Voltage : 2.5V
- Maximum Gate Source Voltage : -20 V, +20 V
- Package Type : SOT-227
- Mounting Type : Surface Mount
- Pin Count : 4
- Channel Mode : Enhancement
- Category : Power MOSFET
- Maximum Power Dissipation : 830 W
- Typical Gate Charge @ Vgs : 525 nC @ 10 V
- CODE No.:125-8041
