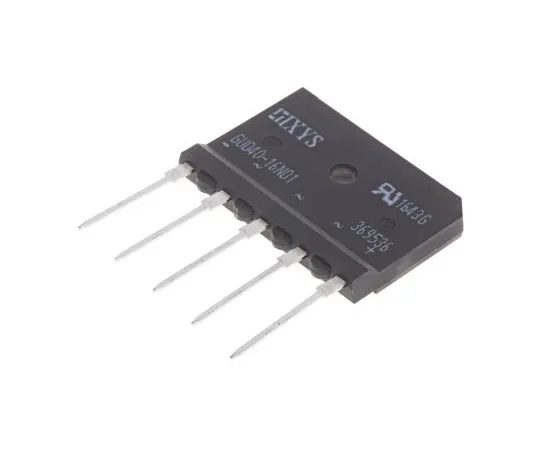

63-6990-72 IXYS GUO40-16NO1, 3-phase Bridge Rectifier, 40A 1700V, 5-Pin GUFP GUO40-16NO1
Product Description
Product Model: 63-6990-72Product Brand: IXYS Features T […]
Contact Us
Product Details
Product Model: 63-6990-72
Product Brand: IXYS
Features
- Three-Phase Bridge Rectifier Attachable with 1 Screw, GUO40 Series, IXYS
- Low Leakage Current: 40 μA Low Forward Voltage Drop: 1.06 V @ 10 A Easily Attachable with 1 Screw
Spec
- Quantity:1piece
- Bridge Type : Three Phase
- Peak Average Forward Current : 40A
- Peak Reverse Repetitive Voltage : 1700V
- Mounting Type : Through Hole
- Package Type : GUFP
- Pin Count : 5
- Diode Technology : Silicon Junction
- Configuration : Single
- Peak Non-Repetitive Forward Surge Current : 400A
- Maximum Operating Temperature : +150 °C
- Minimum Operating Temperature : -40 °C
- Peak Reverse Current : 1.5mA
- Length : 35.3mm
- Width : 5.6mm
- CODE No.:125-8038
