Features

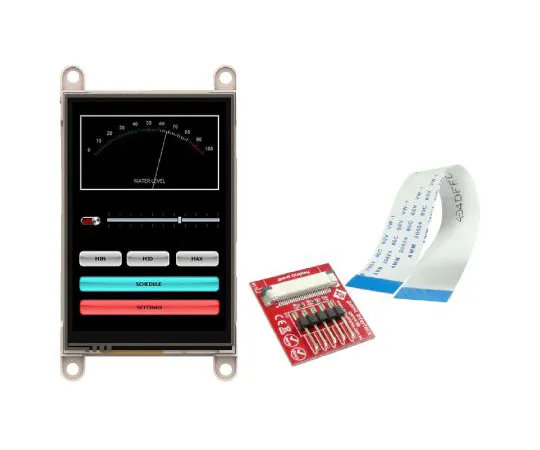

• gen4-uLCD-35DT Diablo16 Touch LCD Module
• The gen4 series from 4D Systems is a TFT LCD display module that enables compact and easy integration of display solutions. This 3.5 ” 320 x 480 pixel type has a 4 wire resistive membrane touch and is suitable for applications requiring a human machine interface.　The gen4 series design allows for easy integration into the final product. This display module features a 30 pin ZIF socket for easy connection to applications and motherboards, eliminating wiring. When space is limited, the connection boards are co-planar on the back of this module to ensure that the display circuitry fits properly within the mounting base and maintains a slim profile. The micro-SD card connector can be ***d for optional multimedia storage and data recording functions.　The gen4 display module is powered by the embedded controller of the 4D Systems Diablo16 processor and can include graphics, text, images and animation capabilities. Diablo16 fully supports the 4D Systems Workshop4 IDE and provides programmers with 4 flexible development environments.
• Features 3.5 ” 320 x 480 Display Module RGB 65 K Real Color 4 Wire Resistor Membrane Touch Compact Module Dimensions: 101.1 x 56.6 x 7.0 mm (mounting tab included) 6 banks of 32 KB flash memory, 32 KB ***r RAM for ***r application code and data x 16 I2C channels with 4 configurable analog outputs x 3 SPI channels x 3 Up to 6 GPIOs available for pin counters Up to 6 GPIOs for PWM Up to 10 GPIOs for pulse outputs Up to 14 GPIOs configurable for orthogonal encoder inputs (2 channels) 30 pin FPC connections are available for signals, power, communications, GPIOs, Can be ***d for programmingThe micro-SD card connector is a PWM audio pin for multimedia storage and data recordingCompatible with all Windows fonts 65 → 101.1 V operationComplies with RoHS and R standardsCE contentsKit contents1 x 56.6 inch gen4-uLCD 7.0 DT LCD display module 1 gen4-IB interface board1 x 32 mm FFC cable
