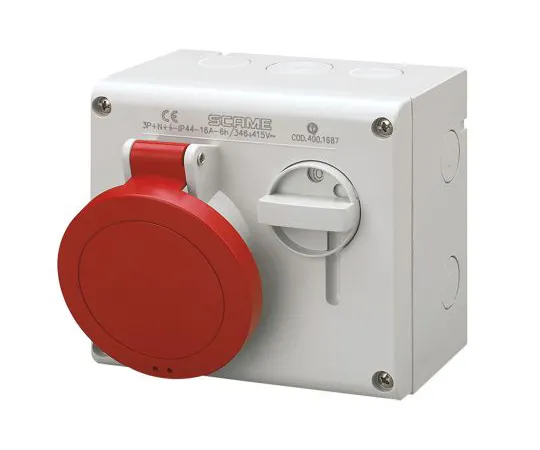

63-6988-49 RS PRO Switchable IP44 Industrial Interlock Socket 3P+N+E, Earthing Position 6h, 16A, 415 V 125-4430
Product Description
Product Model: 63-6988-49Product Brand: RS PRO Features […]
Contact Us
Product Details
Product Model: 63-6988-49
Product Brand: RS PRO
Features
- Horizontal Type with Switch
- RS Pro Surface Mount Outlet Socket has a hard plastic housing and socket cover. Designed for industrial applications, but also for commercial environments. This series is designed with safety in mind and includes mechanical interlocks. If no plug is inserted, the switch will not close, and if the switch is closed, the plug cannot be pulled out. The outlet cover is also protected from opening when the switch is closed. These outlets are available with IP44 (dustproof) or IP67 (waterproof) level protection.
Spec
- Quantity:1piece
- Plug/Socket : Socket
- Pole Format : 3P+N+E
- Switchable : Yes
- Colour : Red
- IP Rating : IP44
- Voltage Rating : 415 V
- Current Rating : 16A
- Body Orientation : Straight
- Dimensions : 136 x 122 x 125mm
- Earthing Position : 6h
- Body Material : Thermoplastic Rubber
- Depth : 125mm
- Length : 136mm
- Width : 122mm
- CODE No.:125-4430
