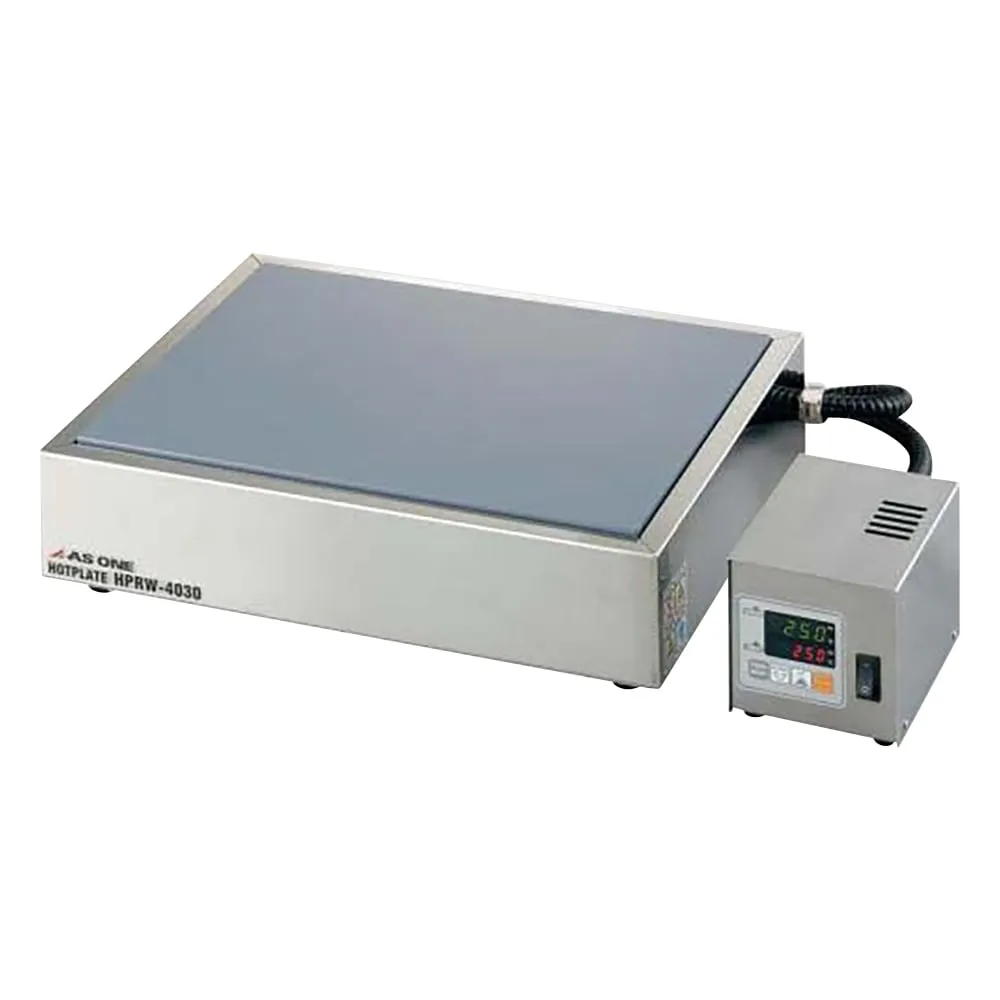

2-661-01-22 Inspection and Inspection Document Before Shipment of Drip-Proof Hot Plate HPRW-4030
Product Description
Product Model: 2-661-01-22Product Brand: AS ONE Corpora […]
Contact Us
Product Details
Product Model: 2-661-01-22
Product Brand: AS ONE Corporation
Features
- Chemical-Resistant Top Plate Series with Ceramic Coating on Top Plate
- The body has a drip-proof structure to prevent water from blowing over (drip-proof structure: IPX3).
- Since the body and control part are separated, it is possible to work away from the body placed in the draft. The distance between the main unit and the control box is approximately 3 m (not separable).
Spec
- Maximum temperature (°C): 300
- Plate Size (mm): 400 x 300
- Body Material: Body/Stainless Steel (SUS304), Control Part/Stainless Steel (SUS430)
- Top Plate Material: Aluminum + Ceramic Coating
- Size/() includes projections: Body/440 x 340 (380) x 120.5 mm, Control/110 x 150 (171) x 102 mm
- Heater Capacity: Sheath Heater 1400 W
- temperature regulator: PID control
- Temperature control timer: 0~99 hours 59 minutes (with device shutdown function)
- safety devices: overcurrent protection
- Power: 100 VAC 50/60Hz
- Power Cord: 2.5 m, Grounded 3P Plug
- Weight: 11.8 kg (including control)
- Load Capacity: 10 kg
- Chemical-Resistant Top Plate
- Model Number: HPRW-4030
- This product can provide inspection and inspection services. Please contact us.
- *The inspection and inspection service is a service that inspects the control system (internal temperature measurement, etc.) and the electric locomotive at the time of shipment or at the customer's site, and issues inspection reports.
