63-6984-24 Siemens Gauge for Aggressive Media, Gas, Liquid, Non-Aggressive Media, Vapour Pressure Sensor, 100bar Max Pressure 7MF1567-3DA00-1AA1
Product Description
Product Model: 63-6984-24Product Brand: Siemens Feature […]
Contact Us
Product Details
Product Model: 63-6984-24
Product Brand: Siemens
Features

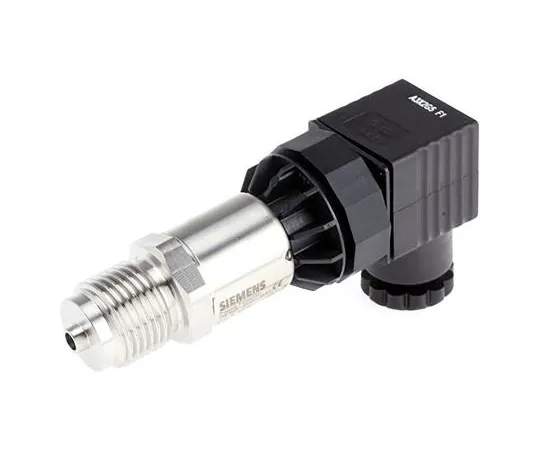

- Siemens SITRANS P220 Series Pressure Transmitter
- The Siemens SITRANS P220 pressure transmitter measures the gauge and absolute pressures of liquids, gases and vapors. It has a stainless steel measurement cell with a thick film resistance bridge that transmits operating pressure. The P220 pressure sensor consists of a stainless steel enclosure fitted with a piezoresistive measurement cell with a diaphragm.
- High measurement accuracy Rugged stainless steel enclosure High overload capacity Suitable for hazardous and harmless media Small design for measuring liquid, gas and vapor pressure No gaskets
Spec
- Quantity:1piece
- Pressure Reading Type : Gauge
- Minimum Pressure Reading : 0bar
- Maximum Pressure Reading : 100bar
- Accuracy : 0.25 %
- Output Type : Analogue
- Analogue Output : 4 → 20 mA
- Response Time : <5 ms
- Maximum Current : 20 mA
- Supply Voltage : 7 → 33 V dc
- Housing Material : Stainless Steel
- IP Rating : IP65, IP67
- Minimum Operating Temperature : -25°C
- CODE No.:125-3729
