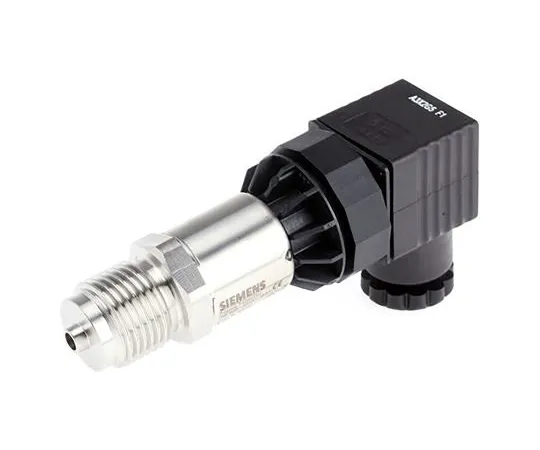

63-6984-18 Siemens Gauge for Aggressive Media, Gas, Liquid, Non-Aggressive Media, Vapour Pressure Sensor, 40bar Max Pressure 7MF1565-3CE00-1AA1
Product Description
Product Model: 63-6984-18Product Brand: Siemens Feature […]
Contact Us
Product Details
Product Model: 63-6984-18
Product Brand: Siemens
Features
- Siemens SITRANS P200 Series Pressure Transmitter
- The Siemens SITRANS P200 pressure transmitter measures the gauge and absolute pressures of liquids, gases and vapors. It has a ceramic measurement cell with a thin film resistance bridge that transmits the operating pressure. The P200 pressure sensor consists of a stainless steel enclosure fitted with a piezoresistive measurement cell with a diaphragm.
- High Measurement Accuracy Rugged Stainless Steel Enclosure High Overload Capacity Suitable for Harmful and Harmless Media Small Design for Liquid, Gas and Vapor Pressure Measurement
Spec
- Quantity:1piece
- Pressure Reading Type : Gauge
- Minimum Pressure Reading : 0bar
- Maximum Pressure Reading : 40bar
- Accuracy : 0.25 %
- Output Type : Analogue
- Process Connection : G1/2
- Analogue Output : 4 → 20 mA
- Response Time : <5 ms
- Maximum Current : 20 mA
- Supply Voltage : 7 → 33 V dc
- Housing Material : Stainless Steel
- IP Rating : IP65, IP67
- Maximum Operating Temperature : +85°C
- CODE No.:125-3720
