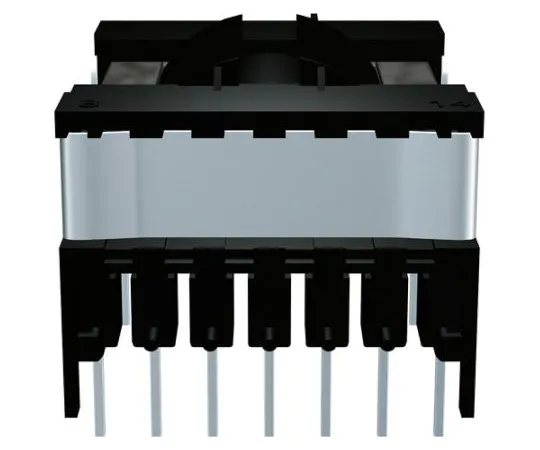

63-6983-81 EPCOS B66359W1013T001 Horizontal Coil Former, 13 Pins B66359W1013T001
Product Description
Product Model: 63-6983-81Product Brand: EPCOS Features […]
Contact Us
Product Details
Product Model: 63-6983-81
Product Brand: EPCOS
Features
- EPCOS B66359 ETD 29/16/10 Windings
- The EPCOS B66359 series ETD 29/16/10 windings have square pins and are available in 13 pin horizontal axis items and 14 pin vertical axis items. They are suitable for *** with B66358 ferrite cores. The horizontal magnetic shafts are made of black GFR polyterephthalate and conform to the insulation class IEC60085: B66359B: F of the UL94 V-0 standard. Perp***icular magnetic shafts are made of black GFR polyterephthalate and conform to insulation class IEC 60085: H of the UL94 V-0 standard. Solderability and solder heat resistance conform to IEC60068-2-20 standards.
Spec
- Quantity:1bag(10pieces)
- Accessory Type : Horizontal Coil Former
- For Use With : ETD 29/16/10 Core
- Number of Pins : 13
- Material : GFR Polyterephthalate
- Length : 35.3mm
- Width : 35.2mm
- Maximum Temperature : +155°C
- CODE No.:125-3669
